Brand Name:	Sihovision
Model Number:	SM117
MOQ:	1 piece
Price:	Negotiable
Packaging Details:	Packing size 282515cm
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE, FCC, RoHS

Product Name:

Box PC

CPU:

Intel I5-1035G1

Operation System:

Windows 10

Memory:

8G DDR4

Storage:

128G SSD

Material:

Aluminum Alloy

Working Voltage:

DC 12-24V

Warranty:

12months

Highlight:

Industrial Mini PC with Intel i5

Fanned Embedded BOX PC 32GB DDR4

Mini PC with 4 USB 3.0 ports

Product Description

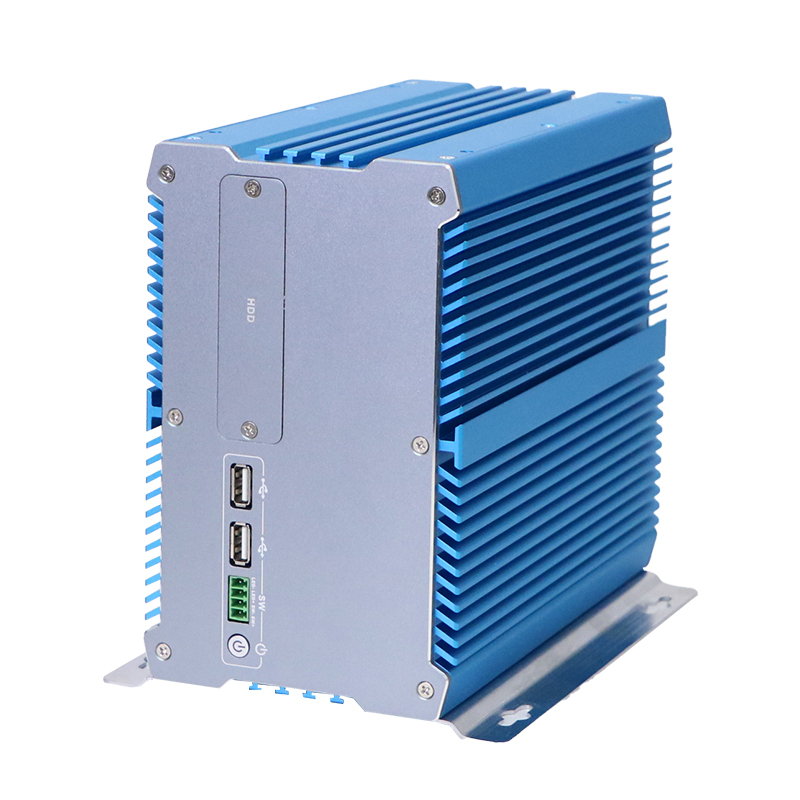

Fanned Embedded BOX PC Intel i5-1035G1 DDR4 32GB 4 USB 3.0

Processor & Memory:

The Intel i5-1035G1 is a 10th generation mobile processor with integrated graphics, designed for low power consumption
32GB DDR4-3200 support provides plenty of memory for industrial applications

Expansion Options:

One PCIe x8 slot for high-bandwidth expansion cards
One additional PCIe slot (likely x1 or x4)
Two Mini PCIe slots for compact expansion modules
Dedicated slots for 4G cellular and Wi-Fi modules

Industrial Features:

Six COM ports with RS-485 support - essential for industrial communication protocols
Eight isolated GPIO pins for interfacing with sensors, relays, or other industrial equipment
Wide voltage input range (12-24V DC) with reverse polarity protection makes it suitable for various industrial power supplies

Specification

Model: SM117
PC
CPU	Intel N97 (4 cores, 4 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless Intel i5-1035G1 (4 cores, 8 threads, 6MB cache, turbo frequency up to 3.6 GHz), Fanless Intel i5-1235U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.4 GHz), Fanless Intel i7-1255U (10 cores, 12 threads, 12MB cache, turbo frequency up to 4.7 GHz), Fanless
Memory	Support 1*DDR4 3200 SODIMM, max 32GB
Display chip	Integrated Intel® UHD Graphics /Intel® Iris® Xe Graphics eligible core graphics card
Display	1x VGA, 1 HDMI (Support synchronous and asynchronous dual display)
Storage	1x M.2 slot (SATA protocol), 1x 2.5-inch hard drive expansion slot
Display	1x VGA, 1 HDMI built-in header
Network	N97: 2x Intel i210AT Gigabit Ethernet ports 1035G1/1235U/1255U: 1x Intel i210-AT, 1x i219-V Gigabit Ethernet port
Front I/O	2x USB2.0, 1x power switch, 4P Phoenix terminal (remote switch), 1x 2.5-inch drawer-type hard drive expansion slot
Rear I/O	4x USB 3.0 (3 on the N97, 1 USB 2.0), 2x LAN, 1x VGA, 1x HDMI, 1x 2-pin Phoenix power connector, 1x clear COM button, 6x COM ports (COM1 to COM4 is 485 mode, COM5 to COM6 is 232 mode), 10-pin Phoenix connector with 4 input and 4 output GPIO (with optocoupler isolation, supports 9-24V wide voltage range), 6-pin Phoenix connector (customizable pins)
Expansion port	Supports 1x M.2 2280 M-key slot (SATA protocol) Supports 1x Mini PCIE slot (supports 3G/4G, Core (supports PCIE and USB signals, N97 only USB signals), with a SIM card holder Supports 1x Mini PCIE slot (supports Wi-Fi/Bluetooth, supports PCIE and USB signals) Optional interfaces (not included in standard shipment): audio jack, expandable 4-input 4-output GPIO
Expansion slots	1 PCIE X8 slot (N97 1X, 1035G1/1235U/1255U 4X) + 1 PCI slot (32-bit)
BIOS	AMI EFI BIOS
WDT	Support hardware reset (256 level, 0-255 sec)
Operation System	Support Windows 10/11, Linux, Ubuntu, Debian etc.
Other	Power on, scheduled startup, network wake-up, PXE boot, watchdog (0-255 levels)
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12-24V
Power consumption	≤30W
Enclosure
Material	Aluminum Alloy
Color	Blue, color can be customized for bulk orders.
Operating Environment
Temperature Range	operating: -10 to 50°C, storage: -10 to 60°C
Relative humidity	0%~95% , non-condensing
Packing Details
Net weight	4kg
Gross weight	5kg
Product Dimension	216 * 185 * 115 mm
Packing size	282515cm
Accessories	Power adapter, Power plug, Wall mount bracket, user manual, warranty card
Other
Mounting (options)	Embedded mount
Mounting (options)	wall mounting brackets (optional)
Warranty	3 years warranty
