Brand Name: | Sihovision |
Model Number: | SC121 |
MOQ: | 1 piece |
Price: | Negotiable |
Packaging Details: | 1pc/ctn 45×44×16cm 5.8kg |
Payment Terms: | T/T,Western Union,MoneyGram,Paypal |

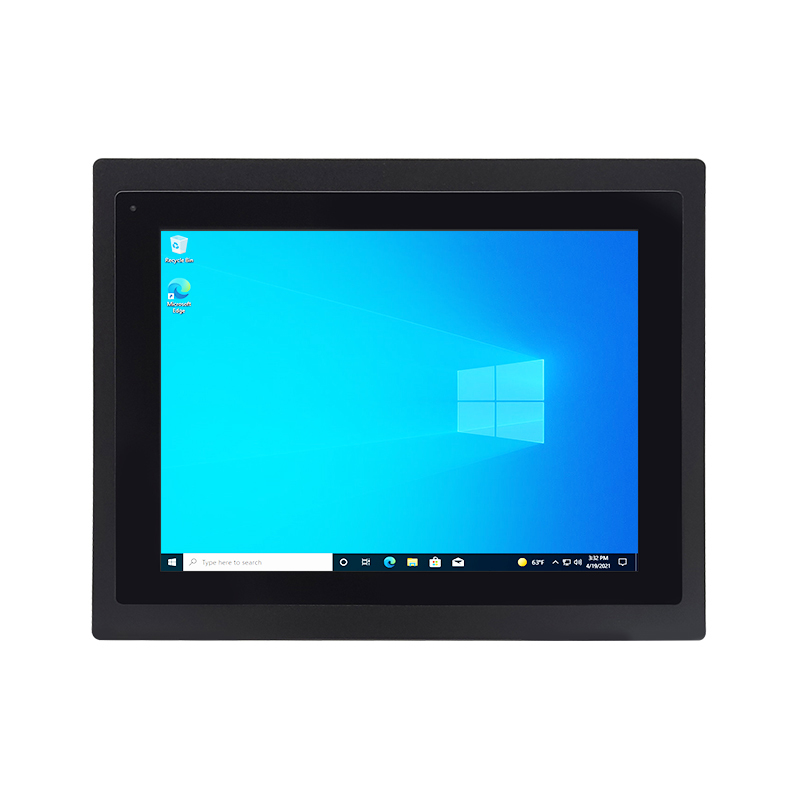

Industrial Touchscreen Computer 1000 Brightness Visible Under Sunlight
1. Aluminum Frame Construction
2. Industrial LCD Display
3. Advanced Touch Technology
4. Industrial Reliability
Specification
Model:SC15 | |
PC | |
CPU | Intel® Celeron J4125, Quad cores, Quad threads, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless |
Chipset | Intel® Gemini Lake |
Memory | 1x DDR4-2400/2133, max 16G |
Storage Capacity | 1x MSATA, 1x SATA3.0 |
Graphics | Intel® UHD Graphics 600 |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1*Realtek RTL8106E Gigabit network card |
Wireless Network | WIFI + Bluetooth 4.0 |
Preinstalled OS | Window10 Pro |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
I/O | |
USB | 2* USB2.0, 2* USB3.0 |
COM | 2* COM RS232 (RS422, RS485 Optional) |
LAN | 1* RJ45 (2x RJ45 Optional) |
Video Outputs | 1*VGA, 1*HDMI |
Audio | 1* 3.5mm Line-out, 1* 3.5mm Line-in |
Power input | 1* 12V DC jack |
Other | 1* Power on/off button |
LCD panel | |
Screen diagonal | 12.1" |
Display active area | 245.76(W)x184.32(H) mm / 9.676x7.257 in |
Resolution | 1024*768 |
Aspect ratio | 4:3 |
Brightness (cd/m²) | 1000 nits sunlight readable |
Brightness control | light sensor for auto dimming |
Contrast ratio | 1000:1 |
View angle | 85°/85°/85°/85° (R/L/U/D) |
Support Color | 16.7M colors |
Backlight | WLED, 50K hours |
Touch panel | |
Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
Surface Hardness | 7H |
Surface treatment | Anti-Glare |
Luminousness | ≥85% |
Touch controller IC | EETI80 |
Available touch drivers | Windows, Linux, Android, Mac, etc |
Touch bonding | Air bonding (Optical bonding optional) |
Touch optional | Resisive touch, non touch, IR touch optional |
Power Supply | |
Working voltage | DC 12V |
Power consumption | 18W |
Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
Enclosure | |
Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
Color | Black, Silver, White optional |
VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
IP grade | Front IP65 waterproof |
Operating Environment | |
Temperature Range | Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉) |
Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
Vibration | GB/T 2423.10-2019 |
Shock | GB2423.5 |
EMC | Class B |
Packing Details | |
Product weight | Net weight 3.23kg |
Product Dimension | 313×257×52mm |
Packing info | 1pc/ctn 45×44×16cm 5.8kg 2pcs/ctn 46×45×33cm 12kg |
Accessories | Power cable, Power supply, Embedded mount screws |
Other | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
Package
Certifications
OEM & ODM
About Shinho Electronic
Application
This device is ideal for:
This type of system would typically be used in outdoor kiosks, industrial control panels, digital signage, or other applications requiring durability and reliable performance in challenging conditions. The combination of weatherproofing, high brightness, and robust construction makes it well-suited for commercial or industrial use.
