Brand Name:	Sihovision
Model Number:	SC101
MOQ:	1 Piece
Price:	negotiable
Packaging Details:	1pcs/ctn 42×15×42cm 4.1kg
Payment Terms:	T/T,Paypal,L/C,D/A,D/P,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE,FCC,RoHS

Product Name:

10.1 Inch High Brightness Panel PC

CPU:

Celeron J4125

IP Grade:

Front Panel IP65

Brightness:

1000cd/m2

Touch:

Projected Capacitive Touch (up To 10 Points )

Resolution:

1280*800

Aspect Ratio:

16:10

View Angle:

80°/80°/80°/80° (R/L/U/D)

Highlight:

10.1 inch embedded all-in-one PC

all-in-one PC with CANBUS interface

embedded touch panel PC with warranty

Product Description

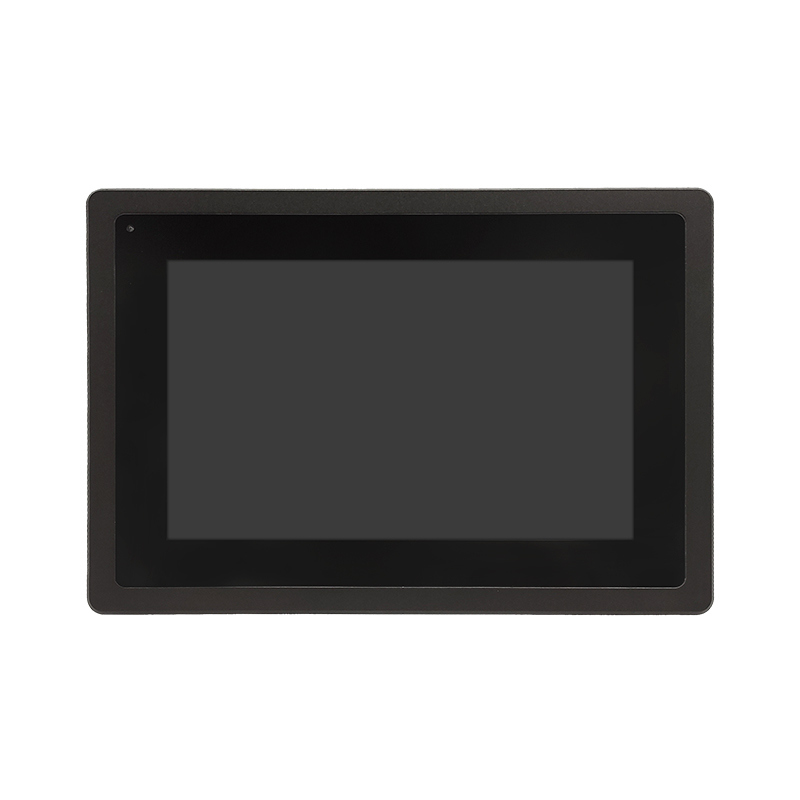

10.1 Inch Embedded All-in-One PC With CANBUS Interface Fanless Capacitive Touch Screen

Aluminum Alloy Frame

Sandblasting creates a uniform matte finish
Anodic oxidation adds a protective layer for corrosion resistance
Anti-UV treatment prevents sun damage and discoloration
IP65 waterproof rating on front means it's dust-tight and protected against water jets (suitable for outdoor/industrial use)

Industrial LCD Screen

Full viewing angle (typically IPS technology) - viewable from any direction
1000 nits brightness - exceptionally bright, easily readable in direct sunlight (standard monitors are 250-350 nits)
Ambient light sensor automatically adjusts brightness

Touch Screen

10-point capacitive touch supports multi-touch gestures
2mm chemically strengthened tempered glass protection
7H hardness (Mohs scale) - highly scratch-resistant
AG (Anti-Glare) coating reduces reflections and fingerprints

CANBUS Interface

Controller Area Network bus protocol
Common in automotive, industrial automation, and machinery
Enables communication with sensors, controllers, and other devices

Industrial-Grade PC

Designed for continuous 24/7/365 operation
Wide temperature range (-20°C to 70°C / -4°F to 158°F)
Fanless or robust cooling for reliability
Industrial-grade components (higher quality capacitors, extended lifecycle parts)

Specification

Model:SC101
PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless Other CPU Optional
Chipset	SOC
Memory	4G DDR4 2400MHz (8G Optional)
Hard Drive Capacity	128G SSD
Graphics	Intel® UHD Graphics
Audio	Onboard ALC269 audio decoding controller
Network	1× Realtek RTL8111 Gigabit network
Wireless Network	WIFI + Bluetooth 4.0 Optional
Operation System	Support Windows 10/11, Linux, Ubuntu, Debian etc.
External I/O Ports
USB	2x USB2.0, 3x USB3.0
COM	2x RS232 (More optional)
LAN	1x LAN
Video output	1x VGA, 1x HDMI
Audio	1x Audio
Power input	1× 12V DC jack, 1× 3-pins terminal block connector(DC 9-36V) optional
Other	1×Power on/off button, 1×WIFI antenna jack male 1×Bluetooth4.0 antenna jack male
LCD panel
Panel size	10.1"
Display active area	216.96(W)x135.6(H) mm / 8.542x5.339 in
Resolution	1280*800
Aspect ratio	16:10
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits
Brightness control	Light sensor for auto dimming
Contrast ratio	900:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	Anti glare (chemical etching)
Luminousness	≥85%
Touch controller IC	ILITEK5200
Available touch drivers	Windows, Linux, Android, Mac
Touch bonding	Air bonding
Power Supply
Working voltage	DC 12V (9-36V DC Optional)
Power consumption	25W
Power consumption	AC 100 ~ 240V input and DC +12V@3.33A MAX output, 40W
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
Finish	Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Silver , Black, white, color can be customized
VESA mounting	75×75mm/100×100mm
IP grade	Front panel IP65 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	Operating: -20 to 70°C, storage :-30 to 80°C
Relative humidity	Up to 90% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 2.73kg Gross weight 4kg
Product Dimension	290×205×59mm
Packing size	1pcs/ctn 42×15×42cm 4.1kg 2pcs/ctn 42×28×42cm 8.5kg
Accessories	Power adapter, Power plug, Embedded screws, Antenna
Other
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
