Brand Name:	Sihovision
Model Number:	SC900M-SC15
MOQ:	1 Piece
Price:	negotiable
Packaging Details:	1pcs/ctn 45×13×40cm 4kg
Payment Terms:	T/T,Paypal,L/C,D/A,D/P,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen , China

Certification:

CE,FCC,RoHS

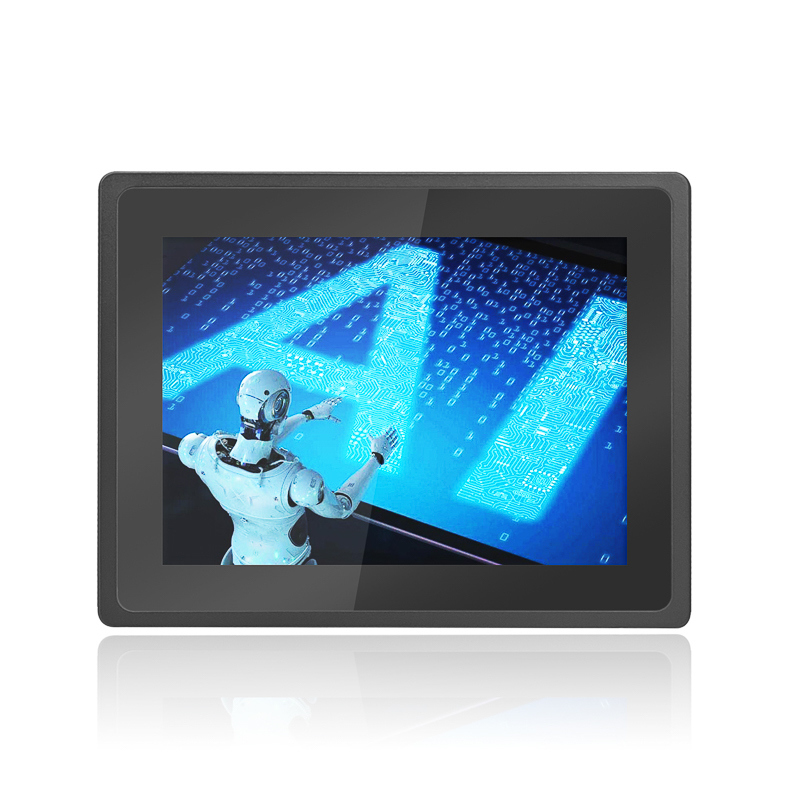

Product Name:

12.1 Inch Embedded Panel PC

CPU:

Intel J4125

IP Grade:

Front Panel IP65

Brightness:

300cd/m2

Touch:

Projected Capacitive Touch

Resolution:

1024*768

Aspect Ratio:

4:3

View Angle:

85°/85°/85°/85° (R/L/U/D)

Product Description

Industrial 10-Point Capacitive Touchscreen Display | IP65 Waterproof | 24/7 Operation

Construction & Durability

Aluminum alloy frame with sandblasting and anodic oxidation finishing
UV-resistant and fade-proof coating
IP65-rated front panel (dust-tight and protected against water jets)

Display

Industrial-grade LCD with full viewing angle (likely IPS technology)
Designed for continuous visibility in various lighting conditions

Touch Interface

10-point capacitive touchscreen (multi-touch capable)
2mm chemically strengthened tempered glass protection
7H hardness rating (highly scratch-resistant, between Mohs 6-7)

Performance & Reliability

24/7 continuous operation capability
Wide operating temperature range: -20°C to 70°C (-4°F to 158°F)
Industrial-grade components for extended lifespan

Specification

Model:SC900M-SC121
PC
CPU	Intel® Celeron J4125, Quad cores, Quad threads, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless
Chipset	Intel® Gemini Lake
Memory	4G DDR4-2400/2133, max 16G
Storage Capacity	128G SSD
Graphics	Intel® UHD Graphics 600
Audio	Onboard ALC269 audio decoding controller
Network	1*Realtek RTL8111E Gigabit network card
Wireless Network	WIFI + Bluetooth 4.0, 4G Optional
Preinstalled OS	Window 10
Operation System	Support Windows 10/11, Linux, Ubuntu, Debian, etc.
I/O
USB	4* USB2.0, 2* USB3.0
COM	1* COM RS232, 1*COM RS485
LAN	1* RJ45
Video Outputs	1VGA, 1HDMI
Audio	1* 3.5mm Line-out, 1* 3.5mm Line-in (2 x 2W Speakers)
Power input	1* 12V DC jack
Other	1* Power on/off button, 1* WIFI antenna jack male
LCD panel
Screen diagonal	12.1"
Display active area	245.76(W)x184.32(H) mm / 9.676x7.257 in
Resolution	1024*768
Aspect ratio	4:3
Brightness (cd/m²)	300 nits (1000 nits sunlight readable)
Brightness control	PWM adjustment
Contrast ratio	1000:1
View angle	85°/85°/85°/85° (R/L/U/D)
Support Color	16.7M colors
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	N/A
Luminousness	≥90%
Touch controller IC	ILITEK2510
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air bonding
Touch optional	Resisive touch, non touch, IR touch optional
Power Supply
Working voltage	DC 12V(9-36V DC Optional)
Power consumption	25W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
Finish	Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Black
VESA mounting	VESA mount 7575/100100mm, Panel mount
IP grade	Front IP65 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Product weight	Net weight 2.8kg Gross weight 3.5kg
Product Dimension	315×258×59mm
Packing info	1pcs/ctn 45×13×40cm 4kg 2pcs/ctn 45×24×40cm 9kg
Accessories	Power cable, Power supply, Embedded mount screws
Other
Warranty	1 year warranty
Certificate	CE, FCC, RoHS
