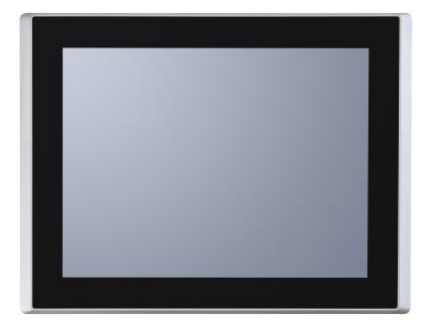

Embedded Touch Panel PC with integrated display and computing unit simplifying system architecture

Brand Name: Sihovision
Model Number: SC101
MOQ: 1 Piece
Price: negotiable
Packaging Details: 1pcs/ctn 35.5x16.5x31.5cm 3.7kg
Payment Terms: T/T,Paypal,L/C,D/A,D/P,Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen , China
Certification:
CE,FCC,RoHS
Product Name:
10.4 Inch Embedded Panel PC
CPU:
Intel J6412
IP Grade:
Front Panel IP65
Brightness:
350cd/m2
Touch:
Project Capacitive Touch (10 Points)
Resolution:
1280 X 800 (16:10)
Contrast Ratio:
900:1
View Angle:
85°/85°/85°/85° (R/L/U/D)
Working Voltage:
DC 9~ 36V 2-pin Phoenix Connector
Highlight:

Embedded Touch Panel PC integrated display

,

Embedded Touch Panel PC computing unit

,

Embedded Touch Panel PC simplified architecture

Product Description
Embedded Touch Panel PC with integrated display and computing unit simplifying system architecture
Features
  • Cordless motherboard design, high-end industrial panel PC
  • Fully enclosed design, the whole PC is dustproof.
  • Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
  • Industrial LCD panel, wide viewing angle, high nits, true color.
  • Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
  • 9-36V DC, 2 Pin Phoenix terminal, Shock-proof
  • High performance motherboard, 7x24 continuous operation.


Specification

Model: SC104
PC
CPUMemory typeStorage Type
J64121x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA), 1x SATA 3.0 (2.5")
N971x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i5-4210U1x DDR3L-1600MHz SO-DIMM, up to 8GB1x M.2 2280 SSD ( SATA ), 1x SATA 3.0 (2.5")
i3-5005U1x DDR3L-1600MHz SO-DIMM, up to 8GB1x M.2 2280 SSD ( SATA ), 1x SATA 3.0 (2.5")
i5-6300U1x DDR4-2400MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i5-7200U1x DDR4-2400MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i7-7500U1x DDR4-2400MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i5-8250U1x DDR4-2400MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i3-1115G41x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i5-1135G71x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i7-1195G71x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i3-1215U1x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i5-1235U1x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
i7-1255U1x DDR4-3200MHz SO-DIMM, up to 32GB1x M.2 2280 SSD (SATA/NVMe), 1x SATA 3.0 (2.5")
Ethernet2 x GbE RJ45 intel i210-AT
I/O Port4 x USB3.0, 2 x USB2.0
2 x DB-9 COM1&COM2,RS-232/485
1 x Audio Line-out/Mic-in
2 x 8Ω 1W Audio AMP out(Optional)
1 x Remote switch Phoenix
1 x AT/ATX Switch
1x HDMI
1x Clear CMOS button
Expansion Slot1x Mini-PCle for SIM Card for 3G/4G, 1x M.2 Key E for WIFI/BT, 1x M.2 Key B for 5G
Watchdog timer255 Levels
OS SupportWindows® 7/10/11,Linux
OthersPXE Boot, UUID
LCD panel
Panel size10.4"
Resolution1024 x 768 (4:3)
Support Color16.7M colors
Brightness (cd/m²)350 (cd/m²)
Contrast ratio900:1
View angle85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5 wire resistive touch optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 9~ 36V 2-pin Phoenix Connector
Power consumption≤30W
Enclosure
MaterialAluminum Alloy
ColorSilver color
VESA mounting100x100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -20 to 60°C, storage: -30 to 70°C
Relative humidity10%~90% @ 30° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
WeightNet Weight: 3 kg Gross Weight: 3.7kg
Product Dimension284 x 210.2 x 58.7 mm
Cut out size275x201.2mm
Packing size35.5x16.5x31.5cm
AccessoriesPower adapter, Power cord, embedded screws, Phoenix Connector for Remote switch
Other
Mounting (options)Embedded mounting screws
Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty2 years warranty
CertificateCE, FCC, RoHS


Typical Applications:

  • Outdoor kiosks and digital signage
  • Industrial control panels
  • Marine/maritime equipment
  • Warehouse/logistics systems
  • Automotive/transportation displays
  • Any harsh environment requiring reliable touch interaction


Advantages

  1. Wide operating temperature range from -20°C to 60°C for harsh industrial environments.
  2. 10.4-inch 4:3 industrial LCD panel with ultra-wide 85° four-side viewing angle, 350 cd/m² brightness, and 16.7M true colors.
  3. 10-point projected capacitive touch with 2ms fast response; 5-wire resistive touch available as an option.
  4. Rich optional CPUs from J6412, N97 up to 12th Gen Core i7, supporting 7×24 continuous stable operation.
  5. Dual Intel i210-AT Gigabit Ethernet, 2× RS232/485 serial ports and abundant expansion including 3G/4G/5G, Wi-Fi & BT for flexible communication.
  6. Heat sink in back case great for heat dissipation and beautiful appearance.
  7. Wide 9–36V working voltage range, suitable for a variety of applications.


Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
