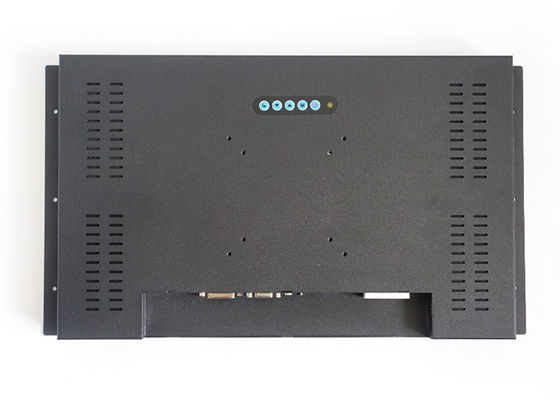

1000 Nits Brightness 15.6 Inch Wide Temperature Touch Screen Panel Anti Glare Monitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Open Frame Monitors | Color | Balck |
|---|---|---|---|
| Material | High Strength Cold Rolled Steel | Resolution | 1920*1080 |
| View Angle | 80°/80°/80°/80° (R/L/U/D) | Signal Ports | VGA/ DVI/ HDMI |
| Brightness | 1000 Cd/m2 | Temperature Range | -20 To 70°C |
| Working Voltage | AC 100 - 240V , 50-60Hz | ||
| High Light | 1000 Nits Brightness Touch Screen Monitor,1000 cd/m2 High Brightness Monitor,Anti Glare High Brightness Monitor |
||
Product Description
Feature
1. Open frame design.
Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL156 | |
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |

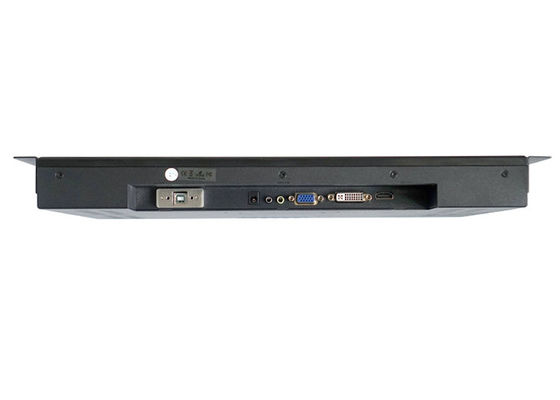

| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy bezel+ High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 5 kg |
| Gross weight | 6.5 kg |
| Product Dimension | 43.58x24.61x3.8 cm |
| Packing size | 52x46x18 cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws open frame mounting kits |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
