Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Model Number:
IPCJ1900

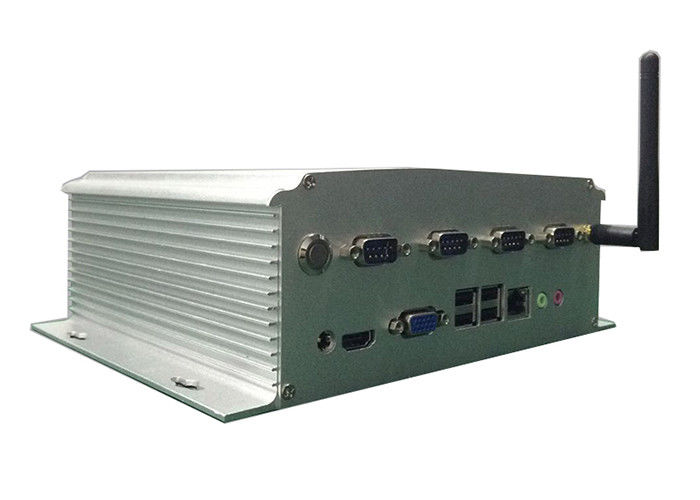

Rugged mounting Industrial Mini computer with Silver and CPU J1900 for industry
Features:
1. High performance motherboard, 7x24 continuous operation.
2. Working temperature:-20° ~65°.
3. The motherboard adopts unique design, (watchdog), remote wakening, automatic reset.
4. Aluminum alloy materials, heat dissipation in the back.
5. Enclosed dust-proof, anti-corrosion, anti-vibration, electromagnetic compatibility and high anti-interference ability.
6. Support Industry Standard Software, compatible with Windows and Linux etc.
Application
Industrial control cabinet
Human Machine Interface
supervisory control and data acquisition
Welding industry
CNC machinery control
Numerical control device
Industrial automation
Advantages
1. High reliability, continuous production, decreasing failure rate.
2. Fast Network Connecting: Wireless & Wired Gigabit Lan.
3. Expandeddisplay for Multi-task, Electricity Boot.
4. Graphics Processing Ability: Clearer Quality Image and full color.
5. Work well in harsh environment.
6. 3G/4G optional for various usage.
Specification
Model:IPCJ1900 | |
PC | |
CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
Chipset | Intel Baytrail celeron J1900 |
Memory | 2G DDR3 (4G,8G optional) |
Hard Drive Capacity | 32G SSD |
Hard Drive Optional | SSD: 64G,128GB,256GB |
HDD: 320GB,500GB,1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI |
I/O Interface | 2×USB 2.0,2×USB 3.0, 4 x COM RS232 |
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤25W |
Enclosure | |
Material | Aluminum Alloy |
Color | Silver , Black, white, color can be customized |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net weight | 2.5kg |
Gross weight | 3kg |
Product Dimension | 23.4×17.5×8 cm |
Packing size | 40×35×15 cm |
Accessories | Power adapter |
Other | |
Mounting (options) | embedded mounting |
wall mounting brackets (optional) | |
Warranty | 1 year warranty |
