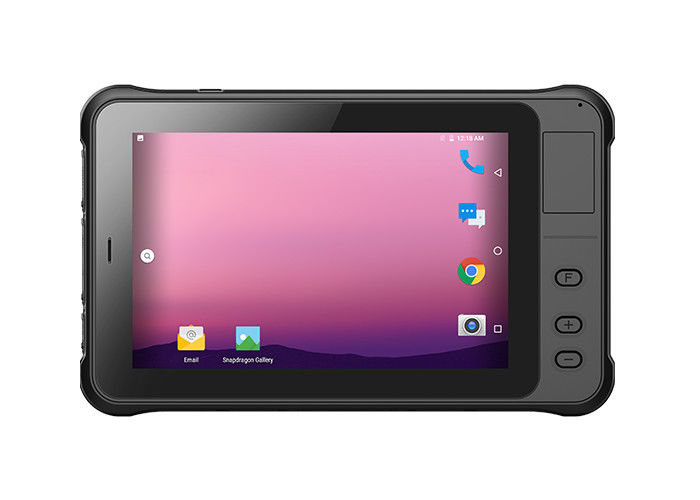

4G WIFI IP65 7in Wall Mounted Rugged Tablet Portable 800x1280 IPS

Place of Origin CN
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number R-Q75BP
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Packing size 325*162*61mm/pcs
Delivery Time 3-5 working days for sample, 5-10 working days for bulk
Payment Terms T/T, Western Union, Paypal, MoneyGram
Supply Ability 2000pcs/day
Product Details
CPU Qualcomm MSM 8953 RAM 4GB
Storage 64G SSD Operation System Android 10 GMS
4G Support GPS Support
NFC NFC- ST21NFCD Camera Front:5.0MP, Rear: 13MP
WIFI Support Screen 7"
Resolution 800*1280 IPS Brightness 1000cd/m2
Touchscreen Capacitive(5 Points) Baterry 3.7V/7500mAh
IP Grade IP65 Waterproof
High Light

IP65 Wall Mounted Rugged Tablet


7in Wall Mounted Rugged Tablet


800x1280 IPS Vehicle Rugged Tablet

Leave a Message
Product Description





CPU MSM 8953, 2.0GHZ
GPU Adreno 506 1920 × 1200 @ 60 fps
Indicator light Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L-Sensor Light/Proximity sensors
Compass Compass Sensor
Gyro Sensor Gyro Sensor
G_sensor G_sensor
WIFI WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI
Bluetooth BT4.1 (BLE) class 1.5, Transmission distance: 10m
2/3/4G CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41; WCDMA 1/2/5/8; GSM 2/3/5/8
Optional: LTE 2/4/7/17
GPS support GPS, Glonass, Beidou
Camera Front:5.0MP, Rear: 13MP auto-facus with flashlight
Speaker 8Ω/0.8W waterproof BOX speaker*1
Mic Sensitivity:-42db, output impedance 2.2kΩ
Operation System Android 10 GMS
LCD panel
Panel size 7"
Resolution 800*1280 IPS
Aspect ratio 16:10
Brightness (cd/m²) 1000cd/m2
Touch panel
Touchscreen Type 5 points capacity TP, G+G
Surface Hardness 7H
USB 1*MicroUSB 2.0
Audio Output 1*3.5mm
HDMI 1*HDMI 1.4a Type C
TF Slot 1*TF Slot, max: 128G
Power 1*Waterproof DC 5V 3A
Pogo Pin 1*12pin Pogo Pin
Power Supply
Power Adaptor AC100V ~ 240V, 50Hz/60Hz, Output DC 5.5V/4A
Battery Removable Li-polymer battery
Capacity: 3.7V/7500mAh
nearly 7hours(50% volume sounds, 50% brightness, 1080P HD video display by default)
nearly 5hours(50% volume sounds, 100% brightness, 1080P HD video display by default)
Operating Environment
IP grade IP65 waterproof
Drop Height 1.22cm composite wood floors, in operation status
Operate Temperature -20 °C to 60 °C
Store Temperature -30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Packing Details
Net weight 680g
Gross weight 1253g
Product Dimension 216.98*133.96*21.4mm
Packing size 325*162*61mm
Warranty 1 year warranty
Certificate CE, FCC, RoHS
Color black
Accessories Power Adaptor, OTG Cable, USB Cable
Module extension (Optional)
One-dimension barcode N 4313, Optical resolution: 5mil, Scan speed: 50 times/s, Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
Two-dimension barcode Honeywell N3680 TTL decoder, optical resolution:5mil, scan speed:50times/s, support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingerprint the fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF-RFID 1: PR9200,recognition distance: 1m~1.5M, TTL port
2: M-550 UHF RFID slim all-in-one module:
ID Module support reading the 2nd, the 3rd ID card information and the fingerprint information built-in.
Optional Accessories
Accessories Docking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge
