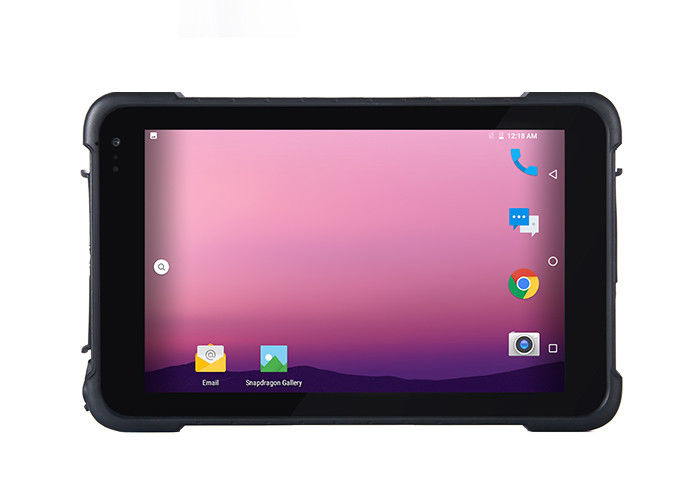

IP65 Waterproof Military 4G Ruggedized Android Tablet 8 Inch NFC
| Place of Origin | CN |
|---|---|
| Brand Name | Sihovision |
| Certification | CE, FCC, RoHS |
| Model Number | R-Q86NL |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | Packing size 357*186*60mm/pcs |
| Delivery Time | 3-5 working days for sample, 5-10 working days for bulk |
| Payment Terms | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability | 2000pcs/day |
Product Details
| CPU | Qualcomm MSM 8953 | RAM | 4GB |
|---|---|---|---|
| Storage | 64G SSD | Operation System | Android 9.0 GMS |
| 4G | Support | GPS | Support |
| Camera | Front:5.0MP, Rear: 13MP | WIFI | Support |
| Screen | 8" | Resolution | 800*1280 IPS |
| Brightness | Minimum 450cd/m2 | Touchscreen | Multipoints Capacitive |
| Baterry | 3.7V/8500mAh | IP Grade | IP65 Waterproof |
| High Light | Military 4G Ruggedized Android Tablet,IP65 Waterproof Ruggedized Android Tablet,NFC Military Rugged Tablet |
||
Product Description
Specification
| Model:R-Q86NL | |
| PC | |
| CPU | MSM 8953 (8 core), 2.0GHZ |
| GPU | Adreno 506 1920 × 1200 @ 60 fps |
| RAM | 4GB/ LPDDR3 |
| SSD | 64GB |
| Indicator light | Indicator light of charge, red light will flash when device has low power. red long light when charging, green long light when full power |
| L-Sensor | 1*light Sensor |
| Compass | 1*Compass Sensor |
| Gyro Sensor | 1*Gyro Sensor |
| G_sensor | G_sensor |
| WIFI | WIFI 802.11 b/g/n/a/ac frequency 2.4G+5G dual band WIFI |
| Bluetooth | BT4.1 (BLE) |
| 2/3/4G | CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41; WCDMA 1/2/5/8; GSM 2/3/5/8 Optional US: LTE B2,B4,B5,B7,B8,B17,B38,B39,B40,B41; WCDMA 2/5/8; GSM 2/3/5/8 |
| GPS | Support: GPS+Glonass; Capture sensitivity: -140 dBm; Cool Start Time: <50s, Hot start time: <5s, GPS frequency: 1575.42MHz,Glonass frequency: 1602MHZ |
| NFC | NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 3cm~5cm |
| Camera | Front:5.0MP, Rear: 13MP auto-facus with flashlight |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | Android 9.0 GMS |
| LCD panel | |
| Panel size | 8" |
| Resolution | 800*1280 IPS |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | Minimum 450cd/m2 |
| Touch panel | |
| Touchscreen Type | Multipoints Capacitive, G+G |
| Surface Hardness | 7H |
| Interface | |
| USB | 1*USB 3.0 |
| Type C | 1*USB data/chargeing |
| Audio Output | 1*3.5mm |
| HDMI | 1*HDMI 1.4a Type C |
| TF Slot | 1*TF Slot, max: 64G |
| SIM | 1*SIM |
| Power | 1*DC 5V 3A |
| Pogo Pin | 1*12pin Pogo Pin |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5.5V/4A |
| Battery | build in polymer li-ion battery |
| Capacity: 3.7V/8500mAh | |
| About 8 Hrs(default 50% volumn, default 400 lumens brightness, play 1080P HD video) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 701g |
| Gross weight | 1366g |
| Product Dimension | 228*145*16.5mm |
| Packing size | 357*186*60mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | black |
| Accessories | Power Adaptor, OTG cable, Type-C cable |
| Module extension (Optional) | |
| One-dimension barcode | MOTO SE655E100R, optical resolution: 5mil, SCAN Speed: 50 times/s, support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | Zebra SE2707 Hardware decoder, optical resolution:5mil, scan speed:50times/s, support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Optional Accessories | |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge, Shoulder-strap, Back-strap, Leather Cover, TP Resist film |
