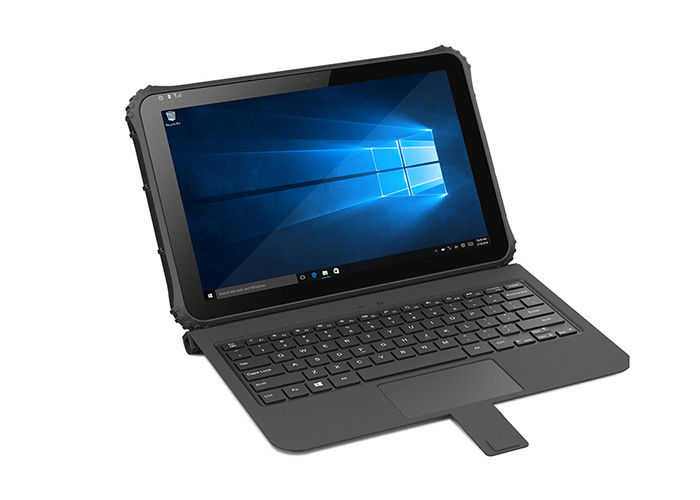

12600mAh Intel Z8350 Rugged Tablet Pc 12 Inch with Mobile Terminal
| Place of Origin | CN |
|---|---|
| Brand Name | Sihovision |
| Certification | CE, FCC, RoHS |
| Model Number | R-I22FLH |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | 1PCS/ Carton 420*258*63mm |
| Delivery Time | 3-5 working days for sample, 5-10 working days for bulk |
| Payment Terms | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability | 2000pcs/day |
Product Details
| CPU | Intel Cherrytrail Z8350 | RAM | 4GB |
|---|---|---|---|
| Storage | 128G | Operation System | Windows 10 |
| Camera | Front:2.0MP, Rear: 5.0MP | Screen | 12.2" |
| Resolution | 1920*1200 | Brightness | 280 Cd/m2 |
| Touchscreen | Capacitive(10 Points) | Baterry | 3.7V/12600mAh |
| IP Grade | IP65 Waterproof | ||
| High Light | 12600mAh Rugged Tablet Pc,Intel Z8350 Rugged Tablet Pc,Mobile Terminal Capacitive Android Tablet |
||
Product Description
Features
1.Support Windows 10 / Android 5.1;
2.Support USB2.0 & USB3.0 connector;
3.Support NXP NFC(13.56M);
4.Support GPS Navigation;
5.Support 1D/2D barcode scanner;
6.Support standard DB9 connector(RS232,RS485);
7.Rugged IP65 protection level;
8.Support 12600mAh loadable batteries;
9.Support High strengthened glass touch panel,gloves and wet hand touch;
10.Support gigabit network interface;
11.Support wrist strap and leather keyboard;
Specification
| Model:R-I22FLH | |
| PC | |
| CPU | Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
| GPU | Intel® HD Graphics |
| RAM | 4GB |
| SSD | 128GB EMMC, Optional 64G |
| G_sensor | G_sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
| Bluetooth | BT4.2 (BLE) class 1, Transmission distance: 10m |
| 3G | Optional: FIBOCOM_H350 GSM/GPRS/EDGE Band(MHz):900/1800; WCDMA Band(MHz):900/2100, 1.Asia Pacific,Europe, 2.China Unicom 3G |
| 4G | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GPS | U-blox NEO-7, Capture sensitivity: -160 dBm; Cool Start Time: <50second, Hot start time: <28seconds, frequency: 0.25 Hz~10 MHz (configurable) |
| NFC | Optional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance: 4cm |
| Camera | front 2.0MP, rear 5.0MP |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | Windows 10 IOT/ Home/ Pro 64bit |
| LCD panel | |
| Panel size | 12.2", Optional SLR sunlight readable film |
| Resolution | 1920*1200 IPS screen |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 280 cd/m2 |
| Touch panel | |
| Touchscreen Type | 10 points capacity TP, G+G |
| Surface Hardness | 7H |
| Interface | |
| USB | 2*USB 2.0 (4pin) (Host) for windows, 1*USB 3.0 (9pin),1* MICRO USB |
| Serial Port | 1*DB9 (RS232), 1*DB9 (RS485) |
| Audio Output | 1*3.5mm |
| HDMI | 1*HDMI 1.4a |
| TF Slot | 1*TF Slot, support SDHC/SDXC*1 max: 128G |
| SIM | 1*SIM |
| Power | 1*DC 5V 3A |
| Ethernet | 1*10/100Mbps |
| Pogo Pin | 1*12pin Pogo Pin |
| USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Keys | |
| power | *1 |
| volume | Volume adjustment key(+ -) *2 |
| Windows home | Windows home*1 |
| Scanner | Code scanner(back of unit)*1 |
| Program | Self define key*2 |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC DC 5V/3A |
| Battery | Lithium-ion polymer / swappable |
| Capacity: 3.7V/12600mAh | |
| 8Hrs (default 50%volumn,default 200lumens brightness,play 1080P HD video) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 1332g |
| Gross weight | 2804g |
| Product Dimension | 319.6*216*23.4 mm |
| Packing size | 420*258*63 mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | Black+silver (Back panel-silver,Front panel-black) |
| Module extension (Optional) | |
| One-dimension barcode | MOTO SE655E100R, Optical Position: 5mil, Scan speed: 50/s, Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Optional Accessories | |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, Removable Battery, Removable keyboard & Bracket, Carry handle, 5V3A Car Charge, Shoulder-strap, Back-strap |
