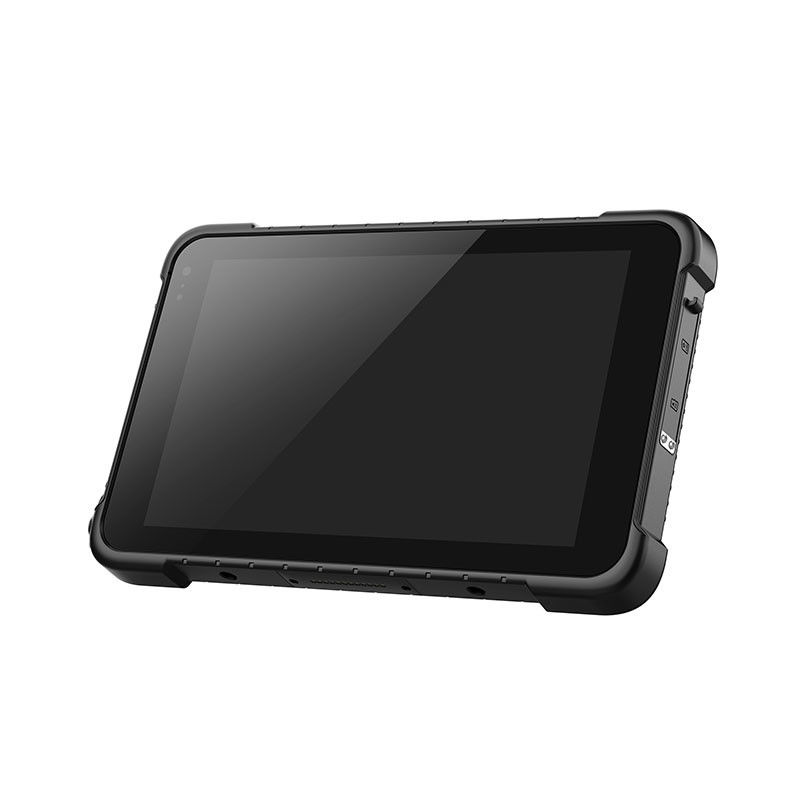

DB9 1D 2D Scanner RJ45 Industrial Rugged Tablet RFID GPS IP65
Place of Origin | CN |
---|---|
Brand Name | Sihovision |
Certification | CE, FCC, RoHS |
Model Number | R-I86NLH |
Minimum Order Quantity | 1 piece |
Price | Negotiable |
Packaging Details | 1PCS/ Carton 357*186*60mm |
Delivery Time | 3-5 working days for sample, 5-10 working days for bulk |
Payment Terms | T/T, Western Union, Paypal, MoneyGram |
Supply Ability | 2000pcs/day |
Product Details
CPU | Intel Cherrytrail Z8350 | RAM | 4GB |
---|---|---|---|
Storage | 64G | Operation System | Windows 10 |
Camera | Front:2.0MP With Indicator Light, Rear: 5.0MP | Screen | 8" |
Resolution | 800*1280 IPS | Brightness | 450 Cd/m2 |
Touchscreen | Capacitive | Baterry | 3.7V/8500mAh |
IP Grade | IP65 Waterproof | ||
High Light | RJ45 Industrial Rugged Tablet,2D Scanner Industrial Rugged Tablet,IP65 RFID Rugged Tablet |
Product Description
Specification
Model:R-I86NLH | |
PC | |
CPU | Intel Cherrytrail Z8350, 1.44Ghz-1.92GHz |
GPU | Intel® HD Graphics |
RAM | 4GB |
SSD | 64GB, Optional 128G |
G_sensor | Gravity acceleration sensor |
WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
3G | Optional: IC: H350-A30: WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface. |
4G | EC25-EC (Europe) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 Optional: EC25-AU LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
GPS | U-blox NEO-7; Capture sensitivity: -160 dBm; Cool Start Time:<50 seconds, Hot start time:<28 seconds, frequency: 0.25 Hz~10 MHz (configurable) |
Camera | Front:2.0MP with indicator light, Rear: 5.0MP |
Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
Mic | Sensitivity:-42db, output impedance 2.2kΩ |
Operation System | windows 10 Smode /Pro |
LCD panel | |
Panel size | 8" |
Resolution | 800*1280 IPS LCD |
Aspect ratio | 16:10 |
Brightness (cd/m²) | 450 cd/m2 |
Touch panel | |
Touchscreen Type | Multipoints Capacitive, G+G |
Surface Hardness | 7H |
Interface | |
USB | 1*USB2.0(Host), 1*micr usb |
Audio Output | 1*3.5mm |
HDMI | 1*HDMI 1.4a Type C |
TF Slot | 1*TF Slot, max 128G |
SIM | 1*SIM |
Power | 1*DC 5V 3A, Optional: Overvoltage protection of circuit, Max DC24V. |
Pogo Pin | 1*12pin Pogo Pin |
Power Supply | |
Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
Battery | build in polymer li-ion battery |
Capacity: 3.7V/8500mAh, 4G: 3.7V/7800MAH | |
8Hrs(default 50% volumn, default200 lumens brightness, play 1080P HD video) | |
Operating Environment | |
IP grade | IP65 waterproof |
Drop Height | 1.22cm composite wood floors, in operation status |
Operate Temperature | -20 °C to 60 °C |
Store Temperature | -30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
Packing Details | |
Net weight | 737g |
Gross weight | 1382g |
Product Dimension | 228*145*16.5mm |
Packing size | 357*186*60mm |
Other | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
Color | black, silver |
Accessories | Power Adaptor, OTG cable, USB cable |
Module extension (Optional) | |
One-dimension barcode | MOTO SE655E100R, optical resolution: 5mil, SCAN Speed: 50 times/s, support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
Two-dimension barcode | MOTO SE4710 Hardware decoder, optical resolution:5mil, scan speed:50times/s, support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
NFC | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
Optional Accessories | |
Accessories | Docking Charger, Hand-strap, Vehicle Mount, Leather Cover, Back-strap, Shoulder-strap, TP Resist film, 5V3A Car Charge |
