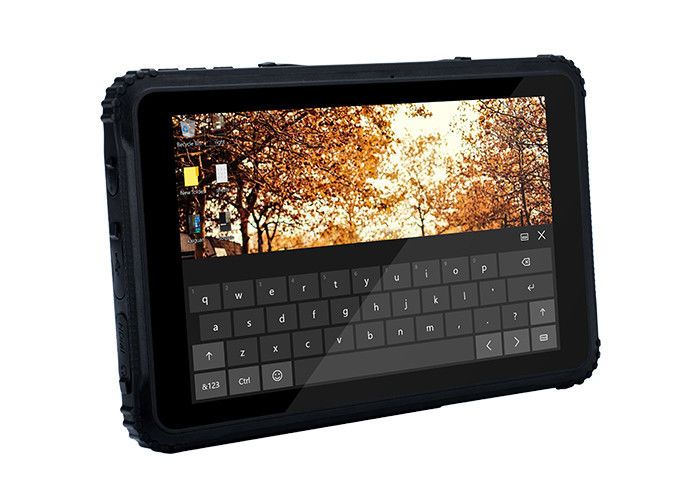

450cd/m2 8in Industrial Rugged Tablet Windows 10 NFC GPS IP67
Place of Origin | CN |
---|---|
Brand Name | Sihovision |
Certification | CE, FCC, RoHS |
Model Number | R-I88KLH |
Minimum Order Quantity | 1 piece |
Price | Negotiable |
Packaging Details | 1PCS/ Carton 357*186*60mm |
Delivery Time | 3-5 working days for sample, 5-10 working days for bulk |
Payment Terms | T/T, Western Union, Paypal, MoneyGram |
Supply Ability | 2000pcs/day |
Product Details
CPU | Intel Cherrytrail Z8350 | RAM | 2GB |
---|---|---|---|
Storage | 32G | Operation System | Windows 10 |
Camera | Front:2.0MP With Indicator Light, Rear: 5.0MP | Screen | 8" |
Resolution | 800*1280 IPS | Brightness | 450cd/m2 |
Touchscreen | Capacitive | Baterry | 3.7V/7500mAh |
IP Grade | IP65 Waterproof | ||
High Light | 8in Industrial Rugged Tablet,450cd/m2 Industrial Rugged Tablet,NFC GPS Waterproof Tablet PC |
Product Description
Feature
1.support Windows 10 system;
2.Support standard USB3.0 connector;
3.Optional with Docking charger docking extension;
4.support NXP NFC(13.56M);
5.Support GPS navigation;
6.Rugged IP67 protection level;
7.support high strength Glass Touch Panel;
8.Support Wrist Strap.
Specification
Model:R-I88KLH | |
PC | |
CPU | Intel cherrytrail Z8350, 1.44Ghz-1.92GHz |
GPU | Intel® HD Graphics |
RAM | 2GB, Optional: 4GB |
SSD | 32GB, Optional 64G/128G |
G_sensor | Gravity acceleration sensor |
WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
3G | IC: H350-A30: WCDMA (900/2100MHz), GSM (900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface. |
4G | Optional: EC25-EC (Europe), LTE FDD: B1/B3/B7/B8/B20/B28A, WCDMA: B1/B8, GSM: B3/B8 |
GPS | U-blox NEO-7; Capture sensitivity: -160 dBm; Cool Start Time:<50 seconds, Hot start time:<28 seconds, frequency: 0.25 Hz~10 MHz (configurable) |
Camera | Front:2.0MP with indicator light, Rear: 5.0MP |
Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
Mic | Sensitivity:-42db, output impedance 2.2kΩ |
Operation System | windows 10 S mode/ Pro 32bit /64bit |
LCD panel | |
Panel size | 8", optional SLR Sunlight visible film |
Resolution | 800*1280 IPS LCD |
Aspect ratio | 16:10 |
Brightness (cd/m²) | 450 cd/m2 |
Touch panel | |
Touchscreen Type | 10points Capacitive, G+G |
Surface Hardness | 7H |
Interface | |
USB | 1*Micro usb3.0 (Host) for windows |
Audio Output | 1*3.5mm |
HDMI | 1*HDMI 1.4a Type C |
TF Slot | 1*TF Slot, max 128G |
SIM | 1*SIM |
Power | 1*DC 5V 3A |
Power Supply | |
Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
Battery | Build in Lithium-ion polymer battery |
Capacity: 3.7V/7500mAh | |
7hrs(default 50% volumn, default200 lumens brightnessplay 1080P HD video) | |
Operating Environment | |
IP grade | IP67 waterproof |
Drop Height | 1.22cm composite wood floors, in operation status |
Operate Temperature | -20 °C to 60 °C |
Store Temperature | -30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
Packing Details | |
Net weight | 649g |
Gross weight | 1317g |
Product Dimension | 220*143*16mm |
Packing size | 357*186*60mm |
Other | |
Warranty | 1 year warranty |
Certificate | CE, FCC, RoHS |
Color | black, silver |
Accessories | Power Adaptor, Micr USB cable |
Module extension (Optional) | |
NFC | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
Optional Accessories | |
Accessories | Hand-strap, Leather Cover, 5V3A Car Charge |
