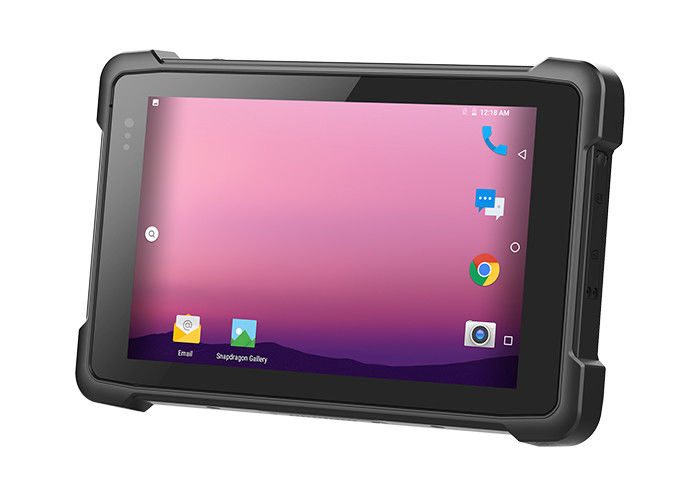

8 Inch 450cd/m2 6000mAh Rugged Android Tablet 800x1280 IPS
| Place of Origin | CN |
|---|---|
| Brand Name | Sihovision |
| Certification | CE, FCC, RoHS |
| Model Number | R-Q81EK |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | Packing size 354*186*60mm |
| Delivery Time | 3-5 working days for sample, 5-10 working days for bulk |
| Payment Terms | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability | 2000pcs/day |
Product Details
| CPU | Qualcomm MSM 8953 | RAM | 4GB |
|---|---|---|---|
| Storage | 64G SSD | Operation System | Android 9 |
| 4G | Support 3G/4G | GPS | Support GPS, Glonass |
| NFC | Optional | Camera | Front 5.0MP Rear 13.0MP |
| WIFI | 2.4G+5G Dual Frequency | Screen | 8" |
| Resolution | 800*1280 IPS | Brightness | 450cd/m2 |
| Touchscreen | Capacitive(5 Points) | Baterry | 3.7V/6000mAh |
| IP Grade | IP65 Waterproof | ||
| High Light | 450cd/m2 Rugged Android Tablet,6000mAh Rugged Android Tablet,800x1280 IPS Barcode Scanner Tablet |
||
Product Description
Functions
1. Support for Android 9.0 system.
2. Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.
3. 6000mAh battery, 6 hours of machine endurance.
4. IP65 high protection level, in accordance with MIL-STD-810G.
5. Support GPS, GLONASS, more accurate positioning.
6. Support 13 million pixel auto focus camera, easy to collect images and video information.
7. Support 1D/2D, NFC and other functional modules for free selection.
Specification
| Model:R-Q81EK | |
| PC | |
| CPU | Qualcomm(OCTA Core), 2.0GHz |
| OS | Android 9.0 |
| RAM | 4GB DDR3 |
| ROM | 64GB |
| Network connections | |
| WIFI | 2.4G+5.8G dual frequency, WIFI 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.1 (BLE) |
| 3G/4G | LTE FDD: B1/B3/B5/B7/B8/B20 |
| LTE TDD: B38/B40/B41 | |
| WCDMA: B1/B2/B5/B8 | |
| GSM: 850/900/1800/1900MHz | |
| Basic parameters | |
| Dimension | 227.5 x 150 x 22mm |
| Weight | device unit 690g |
| Device Color | black |
| LCD | 8inch IPS 16:10,800*1280 |
| Touch Panel | 5 points Capacitive, G+G |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB 3.0 x 1, Type C x 1 |
| SIM Card x 1, TF Card x 1 | |
| HDMI 1.4a x 1 | |
| 12pins Pogo Pin x 1 | |
| Φ3.5mm standard earphone jack x 1 | |
| Φ3.5mm DC jack x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A |
| GPS | support: GPS, Glonass |
| Battery | |
| Capacity | 3.7V/6000mAh |
| Type | Built-in Li-polymer battery |
| Endurance | 6hrs( 50% volume sounds, 50% brightness, 1080P HD video display by default ) |
| Reliability | |
| Operate Temperature | -10 °C ~ 55 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Optional modules | |
| NFC | Support SO/IEC under 14443A mifare protocol, Card reading distance: 3cm~5cm |
| 1D | MOTO SE655E100R, Optical Position: 5mil, Scan speed: 50 times/s |
| 2D | Honeywell N3680, Optical resolution: 5mil/scan speed: 50times/s |
