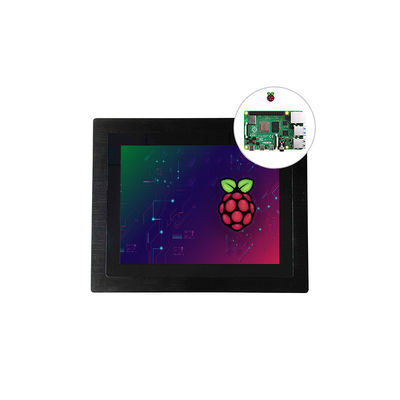

Raspberry Pi Tablet PC 45W 12in Industrial LCD Panel 1000nits LCD Touch Monitor
Product Details
| Product Name | Built In A Raspberry Pi 12 Inch Touchscreen | Products Status | Stock |
|---|---|---|---|
| Resolution | 1024*768 | Screen Size | 12" |
| Interface | VGA, DVI, HDMI | Brightness | 1000 Nits |
| Touchscreen Type | Project Capacitive Touch (10 Points ) | IP Grade | Front Panel IP65 Waterproof |
| Viewing Angle | 80°/80°/80°/80° (R/L/U/D) | Material | Aluminum Alloy Frame |
| Power Supply | DC 12V(AC 100-240V 50/60Hz) | Color | Black |
| Application | Embedded/desktop/wall Mount | Warranty | 1 Years |
| High Light | Raspberry Pi 4b Industrial LCD Panel,45W Industrial LCD Panel,1000nits LCD Touch Monitor |
||
Product Description
Built In A Raspberry Pi 4b 12" Industrial LCD Panel 1000nits Touch Monitor
Key Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .
2. Industrial LCD panel, higt brightness 1000nits sunlight readable.
3. Adopt multi-points PCAP touch panel,high sensitive and fast-response.
4. Built in a raspberry pi 4b (2xspeakers , 4xUSB, 40pins, SD card slot )
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Specification
| Model:SL121P | |
| Raspberry pi | |
| processor | raspberry pi 4b, 64bits, 1.5GHz, quad core |
| Memory | 4GB |
| WIFI | 802.11n wireless 2.4GHz/5GHz double frequency WIFI |
| Bluetooth | Bluetooth 5.0 BLE |
| Network | Gigabit Ethernet port |
| USB port | 2xUSB3.0, 2xUSB2.0 |
| GPIO port | 40 pins |
| Video/Audio port | 2x micro HDMI, support 4Kp60, 1xMIPI DSI, 1xMIPI CSI, stereo audie&composite video ports |
| Multimedia Support | H.265:4Kp60 decoding, H.264:1080p60 decoding, 1080p30 coding, OpenGL ES:3.0 graph |
| Resolution support | 4K, support double-screen display |
| SD card support | Micro SD |
| Power supply | USB type C, 5V 3A |
| POE | optional |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wires resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.1kg |
| Gross weight | 4kg |
| Product Dimension | 33.6×27.4×5.5 cm |
| Packing size | 40×35×15 cm |
| Accessories | Power adapter,embedded screws,SD card reader, VGA cable, HDMI cable, USB cable |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
