Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE,FCC, RoHS
Model Number:
SL07
Contact Us
Feature
1. TFT LED backlight LCD is 7 inch.
2. Robust and durable aluminium alloy bezel and High strength cold rolled steel back enclosure.
3. Support 24V working voltage.
4. Demountable open frame for mounting, ideal for Kiosk/Self-service terminals.
5. Brightness is upto1000 nits.
6. Front panel IP65 waterproof,dustproof and shockproof.
7. Multi-points PCAP touch panel , high sensitive and fast-response.
Application
Marine/Sailing boat
Consumer packaged goods industries
Some other outdoor applications
PhotoBooth
Self-service kiosk
Vending machine
Self-service storage cabinet
Retail store
Outdoor inspection equipment
Other applications in brightly-lit environments
Security Turnstile
Process control systems
Advantages in summary
Sunlight Readable LCD monitors are the best choice for applications where the sun's rays will be falling directly onto the face of the monitor, it;s specifically designed as a low-cost solution for use in bright sunlight
conditions. The 1000 nits brightness enable the user to see sharp, brilliant color video images even in bright ambient (indirect and reflected) light conditions. And it support DC24V working voltage, suitable for different power supply.
Specifications
Model:SL07 | |
LCD panel | |
Panel size | 7" |
Resolution | 1024*600 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits,sunlight readable |
Contrast ratio | 400:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points ) |
Surface Hardness | 7H |
Luminousness | 90% |
Touch Interface | USB |
Touch response time | 2ms |
Working Life | >50 million times |
Touch options | (4 wires resistive touch, IR touch optional) |
Singal Ports | |
VGA | 1×VGA |
HDMI | 1×HDMI |
DVI | optional |
AV | optional |
Audio in/out | optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 24V |
Power consumption | ≤10W |
Enclosure | |
Appearance | Flat panel , demountable open frame for mounting |
Material | aluminium alloy bezel+High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA mounting | 75×75mm |
IP Grade | front panel IP65 waterproof |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Net weight | 1.85kg |
Gross weight | 2.5kg |
Product Dimension | 19.1×12.8×3.4 cm |
Packing size | 37×28×10 cm |
Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
Other | |
Mounting | Embedded screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |

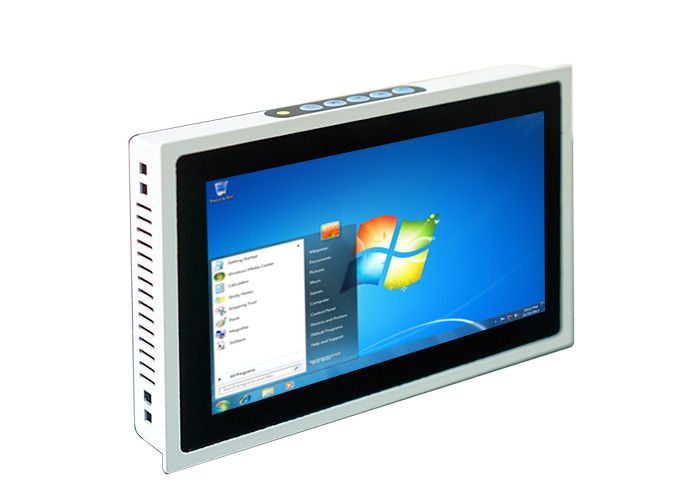

Pictures
