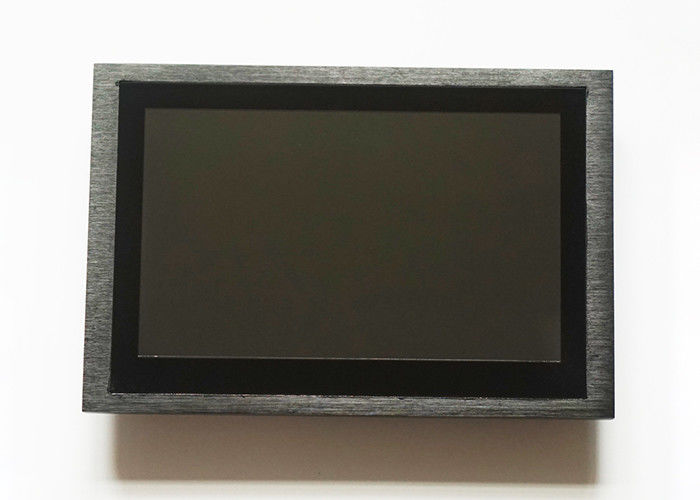

Shockproof High Brightness Monitor DC 12V Working Voltage For Vending Machine
Product Name | 10.1 Inch High Brightness Monitor | Resolution | 1280*800 |
---|---|---|---|
View Angle | 85°/85°/80°/80° (R/L/U/D) | Singal Ports | VGA/HDMI |
Touch Type | 10 Points Capacitive Touch | Working Voltage | DC 12V |
High Light | high brightness display,daylight readable lcd monitor |
10.1 Inch High Brightness Monitor with Sunlight readable and Front Panel IP65
Sunlight Readable LCD monitors are the best choice for applications where the sun's rays will be falling directly onto the face of the monitor, it;s specifically designed as a low-cost solution for use in bright sunlight
conditions. The 1000 nits brightness enable the user to see sharp, brilliant color video images even in bright ambient (indirect and reflected) light conditions.
Feature
1. TFT LED backlight LCD is 10.1 inch.
2. Robust and durable aluminium alloy bezel and High strength cold rolled steel back enclosure.
3. Great for open frame mounting, ideal for Kiosk/Self-service terminals, also support wall mounting etc.
5. Brightness is upto1000 nits, sunlight readable.
6. Front panel is IP65 waterproof,dustproof and shockproof.
7. Multi-points PCAP touch panel , high sensitive and fast-response.
Application
It is ideal for applications such as marine/Sailing boat, consumer packaged goods industries, some other outdoor applications, photoBooth, Self-service kiosk, vending machine, Self-service storage cabinet, retail store, outdoor inspection equipment, other applications in brightly-lit environments, security Turnstile and process control systems.
Specifications
Model:SL101 | |
LCD panel | |
Panel size | 10.1" |
Resolution | 1280*800 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits,sunlight readable |
Contrast ratio | 400:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | Project Capacitive Touch (10 points ) |
Surface Hardness | 7H |
Luminousness | 90% |
Touch Interface | USB |
Touch response time | 2ms |
Working Life | >50 million times |
Touch options | (4 wires resistive touch, IR touch optional) |
Singal Ports | |
VGA | 1×VGA |
HDMI | 1×HDMI |
DVI | optional |
AV | optional |
Audio in/out | optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 24V |
Power consumption | ≤10W |
Enclosure | |
Appearance | Flat panel , demountable open frame for mounting |
Material | aluminium alloy bezel+High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA mounting | 75×75mm |
IP Grade | front panel IP65 waterproof |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Net weight | 1.85kg |
Gross weight | 2.8kg |
Product Dimension | TBC |
Packing size | 33×30×10cm |
Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
Other | |
Mounting | Embedded screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 3 years warranty |
Certificates | CE, FCC, RoHS |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
Pictures
