Open Frame High Brightness LED Display Capacitive USB Touch Screen Monitor 7 Inch 1000 Nits

Open Frame High Brightness LED Display Capacitive USB Touch Screen Monitor 7 Inch 1000 Nits

sunlight readable display

high brightness display

Place of Origin:

China(Mainland)

Brand Name:

SHINHO

Certification:

CE, FCC, RoHS

Model Number:

SL07

Contact Us
Request A Quote
Product Details
Product Name:
1000nits Waterproof LCD Monitor
Color:
Black And Silver
Material:
Aluminum Alloy Bezel+High Strength Cold Rolled Steel Back Case
IP:
Front Panel IP65 Waterproof
Touch Type:
Project Capacitive Touch (10 Points )
View Angle:
75°/75°/70°/75° (R/L/U/D)
Surface Hardness:
7H
Warranty:
12months
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description

7 Inch 1000 Nits Open Frame Capacitive USB Touch Screen Monitor





Features


1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.
4. VGA+HDMI interfaces, USB for touch.
5. 1000 nits, sunlight readable.
6. Support wall mounting, embedded mounting, desk stand mouting etc.



Specification



Model:SL07
LCD panel
Panel size 7"
Resolution 1024*600
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Contrast ratio 800:1
View angle 75°/75°/70°/75° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
HDMI 1x HDMI
DVI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 75x75mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 1kg
Gross weight 2kg
Product Dimension 21.8*15.5*3.1cm
Packing size 36*26*6cm
Accessories Power adapter, HDMI cable, USB touch cable, embedded screws, open frame kits
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS



Pictures

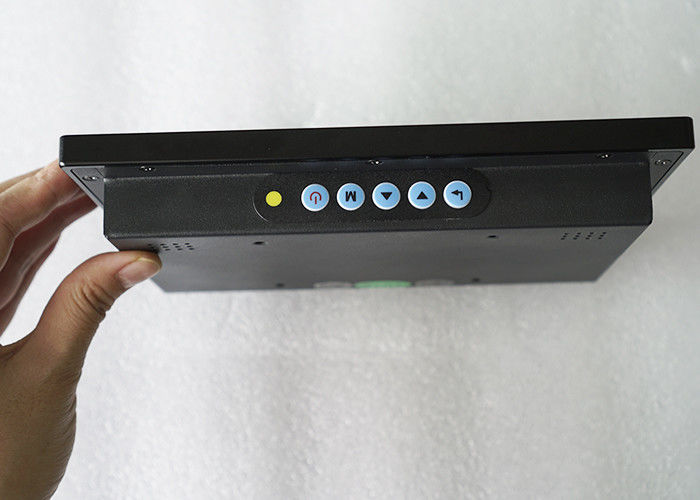

Open Frame High Brightness LED Display Capacitive USB Touch Screen Monitor 7 Inch 1000 Nits 0

Open Frame High Brightness LED Display Capacitive USB Touch Screen Monitor 7 Inch 1000 Nits 1





Application



Fare collection Gates



Gas/petrol station



Automatic vending machines



Indoor livestock equipment



Residential Buildings



Laundry locker



Social Security Bureau



Parking management system



Outdoor cabinet



Apartment buildings
