Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SL07
Contact Us
7 Inch 1000nits High Brightness Open Frame Capacitive Touch Monitor RS232
Features
1. Front panel IP65 waterproof.
2. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.

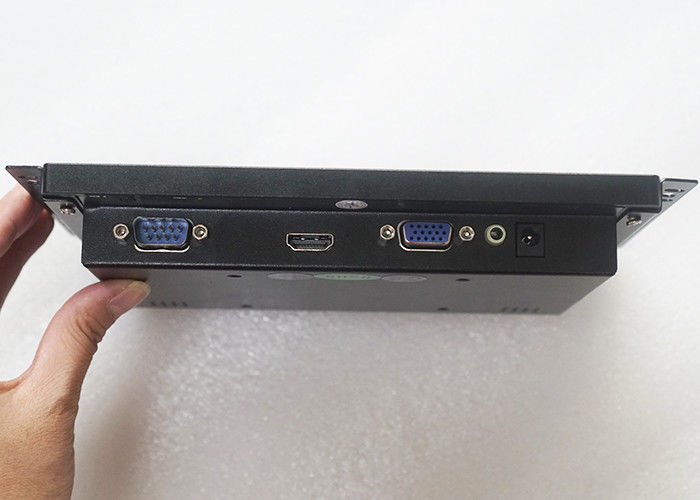

4. VGA+HDMI interfaces, RS232 for touch.
5. 1000 nits, sunlight readable.
6. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model: SL07 | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/70°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | RS232 (USB optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 2kg |
| Product Dimension | 21.8*15.5*3.1cm |
| Packing size | 36*26*6cm |
| Accessories | Power adapter, HDMI cable, RS232 touch cable, embedded screws, open frame kits |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Application
Sports Lotteries
Outdoor Cabinet
Apartment buildings
Control cabinet technology
Access control attendance
Smart Lockers parcel locker
Intelligent photo album classification
Self-service medical ticketing machine
Automatic medical film taking machine
Intelligent photo album classification
