RS232 Capacitive Touch Monitor Sunlight Readable 1000 Nits Brightness 7'' Panel
| Place of Origin | China(Mainland) |
|---|---|
| Brand Name | SHINHO |
| Certification | CE, FCC, RoHS |
| Model Number | SL07 |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | 1 pcs/ gift box, size: 36*26*6cm, 2KG; 10 pcs/ carton |
| Delivery Time | 7-15 working days for sample, 15 working days for bulk |
| Payment Terms | T/T, Western Union, MoneyGram, Paypal |
Product Details
| Product Name | Sunlight Readable 1000 Nits Brightness Monitor | Panel Size | 7'' |
|---|---|---|---|
| Resolution | 1024*600 | Brightness | 1000 Nits, Sunlight Readable |
| Touchscreen Type | Project Capacitive Touch (10 Points ) | IP Grade | Front IP65 Waterproof |
| Signal Ports | VGA+HDMI | Mounting | Embedded Mounting, Wall Mouting, Desk Stand Mouting |
| High Light | capacitive touch screen monitor,multi touch screen monitor |
||
Product Description
RS232 Capacitive Touch Sunlight Readable 1000 Nits Brightness Monitor Truck
Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.

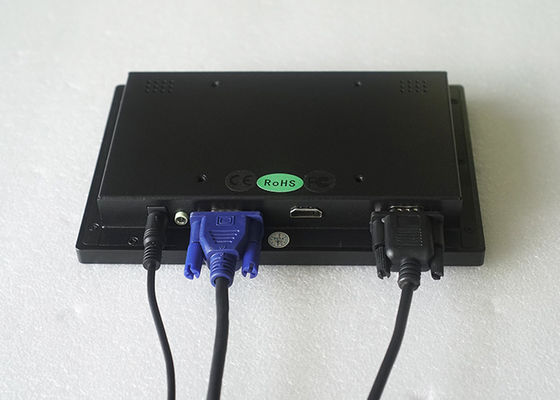

4. VGA+HDMI interfaces, RS232 for touch.
5. 1000 nits, sunlight readable.
6. Support wall mounting, embedded mounting, desk stand mouting etc.
Customizations
1. USB for touch.
2. 400 nits, indoor use.
3. 3MM bezel design, ideal for embedded mounting.
4. Anti glare.
5. Light sensor for auto dimming, adjust the brightness according to the environment.
Specification
| Model: SL07 | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/70°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | RS232 (USB optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| DVI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 75x75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 2kg |
| Product Dimension | 21.8*15.5*3.1cm |
| Packing size | 36*26*6cm |
| Accessories | Power adapter, HDMI cable, RS232 touch cable, embedded screws, open frame kits |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
