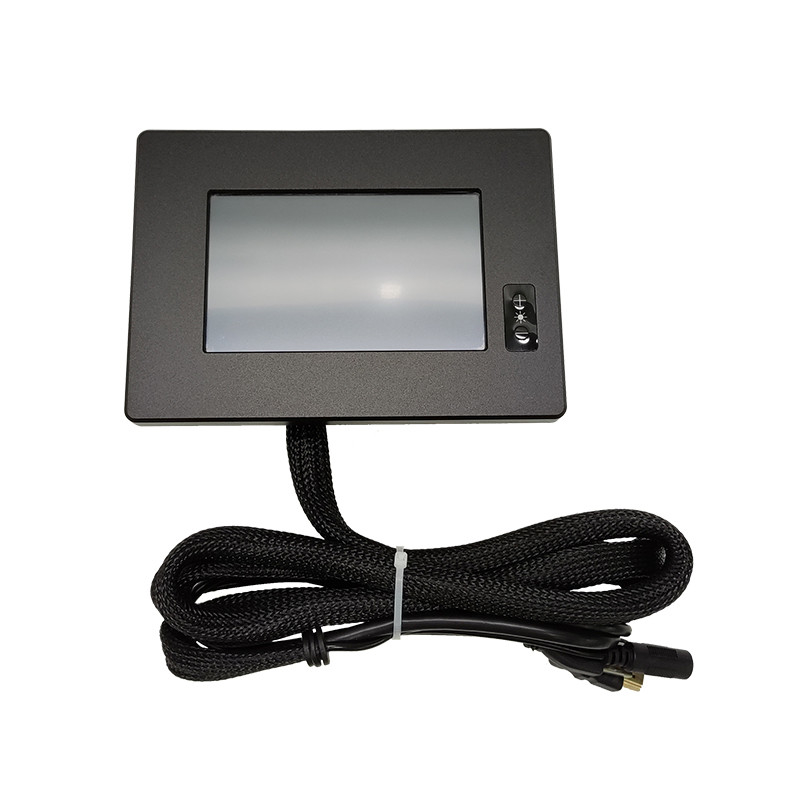

The touch monitor is an ideal replacement for less capable HMI control screens. The fully sealed high strength rolled steel housing makes it an ideal plug-and-play solution for High-pressure humid environment. Featuring a fully fanless and IP65 rated waterproof design, you can confidently place this waterproof monitor into even the most demanding work environment. The monitor includes an on-screen display (OSD) controls on the back of the unit for quick adjustment of your display settings.
1. All Enclosure is Fully IP65 seamless.
2. The front bezel is Aluminum alloy, the back case material is high strength rolled steel.
3. The LCD panel is industrial-grade and high brightness 1000nits, sunlight readable.
4. Adopt high precision industrial 4 wires resistive touch screen with high precision, durable and anti-interference.
5. There are speakers inside with waterproof back case.
6. A button on the front bezel for brightness adjustment.
This display is widely used for Motorbike/Bike, Vehicles/Truck, Aircraft, Boats/Ships, Other applications in brightly-lit environments, Marine/Sailing boat, Security Turnstile, Stadium, Bicycle sharing, Sporting ground and other outdoor applications.
|Support Color||16.7M colors|
|Brightness (cd/m²)||1000 nits, sunlight readable|
|View angle||75°/75°/60°/70° (R/L/U/D)|
|Touchscreen Type||4 wire resistive touch|
|Touch Interface||USB (RS232 optional)|
|Touch response time||<8ms|
|Working Life||>35 million times|
|Touch options||(PCAP touch optional)|
|OSD control||Brightness, contrast ratio, auto adjustment, H/V position, language select etc.|
|Support languages||English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.|
|Support OS||Windows XP, Windows /7/8/10, Linux, Mac OS X, Android etc.|
|External Power Supply||AC 100 - 240V|
|Working voltage||DC 12V-24V wide voltage|
|Material||Aluminum alloy bezel+High strength cold rolled steel back case|
|Color||Black, white, Silver, color can be customized|
|Temperature Range||operating: -20 to 70°C, storage :-30 to 80°C|
|Relative humidity||operating: 10% to 90% , storage :5% to 90%|
|Product Dimension||16.2×11.6×3.6 cm|
|Packing size||33.0×21.6×8.7 cm|
|Accessories||Power adapter, touch pen, touch driver|
|Mounting (options)||1) provide wall brackets for wall-mounting, VESA 75×75mm|
|2) provide a stable metal holder to support the monitor|
