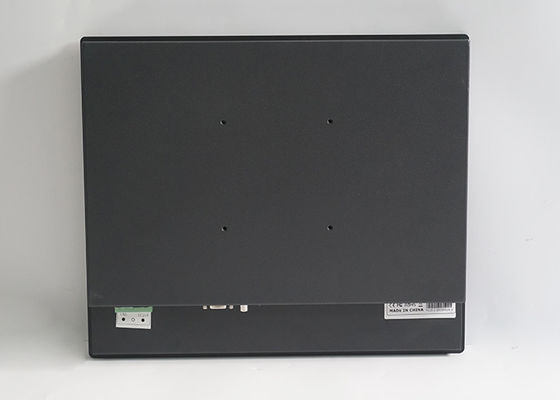

Waterproof IP65 Ultra Thin Touch Screen Monitor 15'' Dimmer For Controlling Brightness
Product Details
| Product Name | 15 Inch Touch Monitor With Dimmer | Products Status | Stock |
|---|---|---|---|
| Material | Aluminium Alloy | Resolution | 1024*768 |
| Brightness | 1000+ Cd/m2 | Interface | VGA,USB,HDMI |
| Response Time | 5ms | View Angle | 80°/80°/80°/80° (R/L/U/D) |
| Type | Touch Screen Monitor | Touch Type | Capacitive Touch |
| IP Grade | Front Panel IP65 Waterproof | Color | Black |
| Power Supply | DC 12V(AC 100-240V 50/60Hz) | Application | Desktop,monitor,Embedded,banana Pi,VESA Mount |
| Warranty | 12months | ||
| High Light | capacitive touch screen monitor,multi touch screen monitor |
||
Product Description
15 inch sunlight readable industrial touch monitor with dimmer for controlling the brightness
Features
1. Material: aluminium alloy bezel+metal back case.
2. Industrial 15'' LCD panel, 1024*768 resolution, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. Anti glare.
5. High brightness 1000 nits, sunlight readable.
6. with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
7. High performance mainboard, 7x24 continuous operation.
8. VGA+HDMI+AV+USB player+USB for touch.
9. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| AV | 1x AV |
| USB player | 1xUSB player |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 5kg |
| Gross weight | 6kg |
| Product Dimension | 37.26*31.19*3.85cm |
| Packing size | 48*45*18cm |
| Accessories | Power adapter, power cord, HDMI cable, USB touch cable, embedded screws |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
