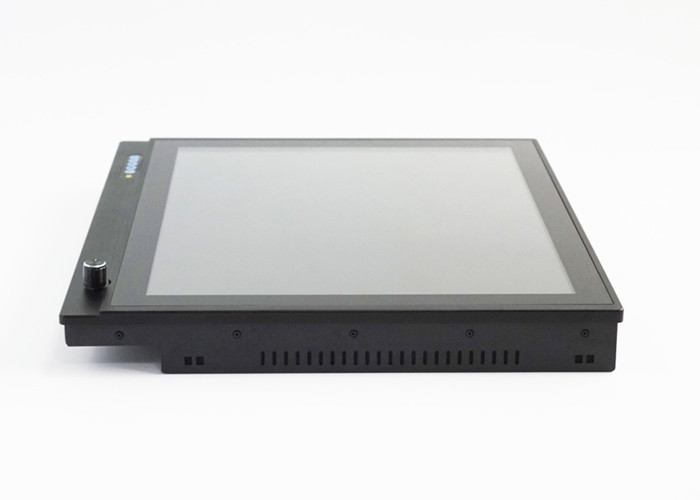

1280x1024 Capacitive Touch Monitor 19 Inch 1000nits High Brightness Display
Product Details
| Product Name | 19inch Industrial Monitor | Products Status | Stock |
|---|---|---|---|
| Resolution | 1280*1024 | Screen Size | 19" |
| Interface | VGA, HDMI, DVI | Brightness | 1000+ Nits |
| IP Grade | Front Panel IP65 Waterproof | Viewing Angle | 80°/80°/80°/80° (R/L/U/D) |
| Material | Aluminum Alloy Frame | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | Yes | Panel Type | TFT |
| Color | Black | Application | Embedded/desktop/wall Mount |
| Warranty | 1 Years | ||
| High Light | capacitive touch screen monitor,multi touch screen monitor |
||
Product Description
1280x1024 Industrial Monitor 19 Inch 1000nits high brightness display with dimmer for controlling the brightness
Features:
1. Material: aluminium alloy bezel+metal back case.
2. Industrial 19'' LCD panel, 1280*1024 resolution, wide viewing angle, high nits, true color.
3. Cover with 2MM tempered glass, Anti glare, Flat panel, front panel IP65 waterproof.
4. High brightness 1000 nits, sunlight readable.
5. with dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
6. High performance mainboard, 7x24 continuous operation.
7. VGA+HDMI+DVI interfaces.
8. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model:SL19 | |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6kg |
| Gross weight | 8kg |
| Product Dimension | 44.18*38.68*4.8cm |
| Packing size | 53*47*18cm |
| Accessories | Power adapter, power cord, HDMI cable, embedded screws |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
