Sunlight Readable Open Frame LCD Monitor 7'' 1000 Nits For Self Service Terminals
Product Details
| Product Name | 7 Inch Open Frame Monitor | Products Status | Stock |
|---|---|---|---|
| Resolution | 1024*600 | Screen Size | 7" |
| Interface | VGA, HDMI | Brightness | 1000+ Nits |
| IP Grade | Front Panel IP65 Waterproof | Viewing Angle | 75°/75°/70°/75° (R/L/U/D) |
| Material | Aluminum Alloy | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | Yes | Panel Type | TFT |
| Color | Black | Application | Embedded/desktop/wall Mount |
| Warranty | 1 Years | ||
| High Light | capacitive touch screen monitor,multi touch screen monitor |
||
Product Description

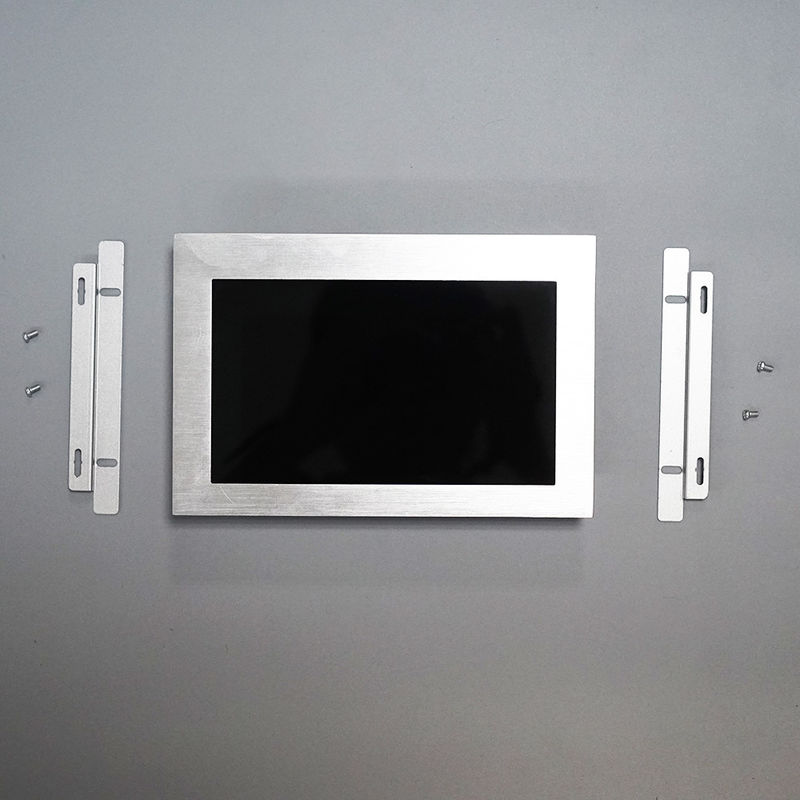

7 inch 1000 nits sunlight readable demountable open frame LCD monitor for Kiosk/Self-service terminals
Features:
1. Robust and durable all-metal enclosure, front panel IP65 waterproof,dustproof and shockproof.
2. Industrial LCD panel, wide viewing angle, high nits, 1000 nits,sunlight readable.
3. High performance mainboard, 7x24 continuous operation.
4. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility.
5. Demountable open frame for mounting, ideal for Kiosk/Self-service terminals.
Specification
| Model:SL07 | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 1000cd/m² , sunlight readable |
| Contrast ratio | 500:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Material | Aluminum alloy front frame + High strength cold rolled steel rear case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.25kg |
| Product Dimension | 19.2×12.8×3.9 cm |
| Packing size | 24×20×11cm |
| Accessories | Power adapter, HDMI / VGA cable, mounting frames |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
