Anti Reflection Open Frame LCD Monitor 7 Inch Touch Screen With Light Sensor
Product Details
| Product Name | 7 Inch Open Frame Displays | Products Status | Stock |
|---|---|---|---|
| Resolution | 1024*600 | Screen Size | 7" |
| Interface | VGA, HDMI | Brightness | 1000 Nits |
| Viewing Angle | 85°/85°/80°/80° (R/L/U/D) | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | YES | Panel Type | TFT |
| Application | Embedded Mount | Warranty | 1 Years |
| High Light | open frame led monitor,industrial open frame monitor |
||
Product Description

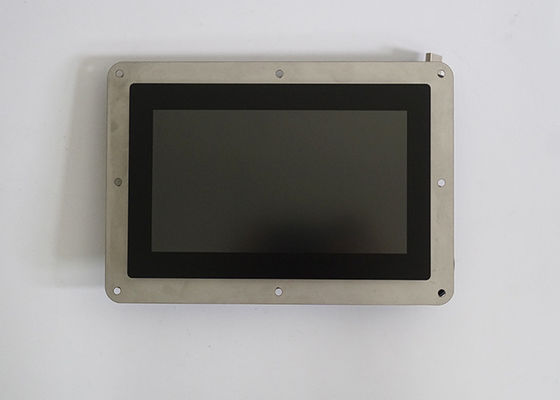

Anti reflection without case 7 inch open frame touch screen monitor with light sensor
Specification
| Model:SL07 | |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness | with light sensor, to adjust brightness automatically |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 wires restive touch ) |
| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Material | Aluminum alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 75x75mm |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 0.6kg |
| Gross weight | 1 kg |
| Product Dimension | 21.21*14.76*3.32cm |
| Packing size | 29*27*13cm |
| Accessories | Power adapter, Power cord, HDMI /VGA cable, USB touch cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Key Features:
1000 nits high brightness, sunlight readable.
With light sensor for auto dimming.
High performance mainboard, 7x24 continuous operation
Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
Industrial wide temperaturer LCD panel, wide viewing angle, high nits, true color.
Anti glare, Anti reflection.
Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.
Open frame design, without case.
EETI waterproof solution
touch function can work well with drop water on the screen.
Accessories:
Power cable, Power adapter, Video cable
