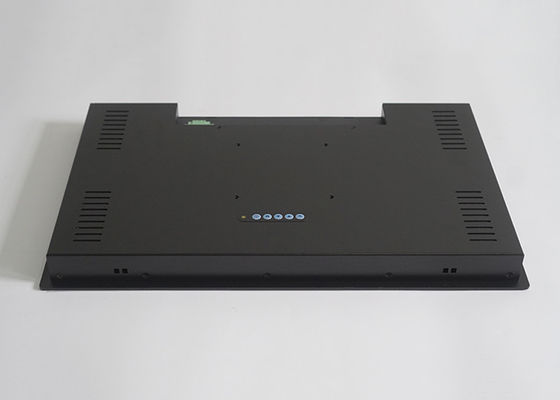

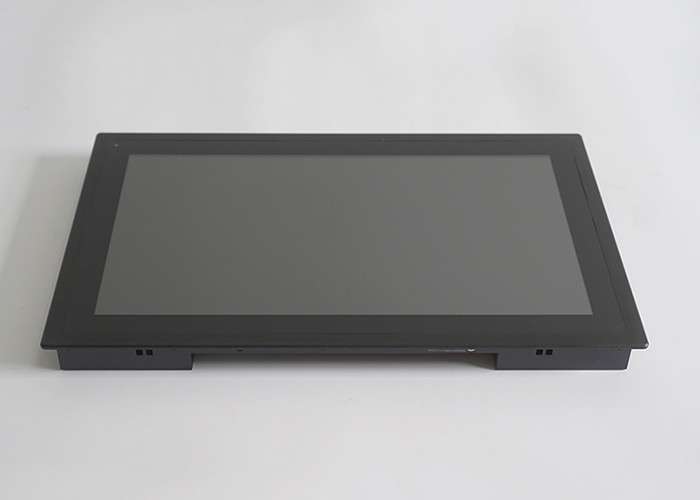

18.5 Inch IP65 Anti Glare Embedded LCD Monitors For Boat
Product Details
| Product Name | Industrial Monitor With Anti Glare | Products Status | Stock |
|---|---|---|---|
| Resolution | 1920*1080 | Screen Size | 18.5" |
| Interface | HDMI/VGA | Brightness | 1000 Nits |
| IP Grade | IP66 Waterproof | Viewing Angle | 88°/88°/88°/88° (R/L/U/D) |
| Material | Aluminium Alloy Front Bezel + High Strength Cold Rolled Steel Back Case | Touchscreen Type | Project Capacitive Touch (10 Points ) |
| Temperature Range | Operating: -20 To 70°C, Storage: -30 To 80°C | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | Yes | Color | Black |
| Application | Desktop/wall Mount | Warranty | 1 Years |
| High Light | Anti Glare Embedded LCD Monitor,18.5 Inch Embedded LCD Monitor,IP65 Open Frame Monitor |
||
Product Description
18.5 inch embedded mounting Anti glare High brightness computer monitors IP65 for boat
Key Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL185 | |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 88°/88°/88°/88° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy bezel+ High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 6.5 kg |
| Gross weight | 7.5 kg |
| Product Dimension | 48.48x30.54x3.8 cm |
| Packing size | 64x46x18 cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws open frame mounting kits |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Certificates | CE, FCC, RoHS |
Accessories:
Power cable, Power adapter, Video cable, Screws
