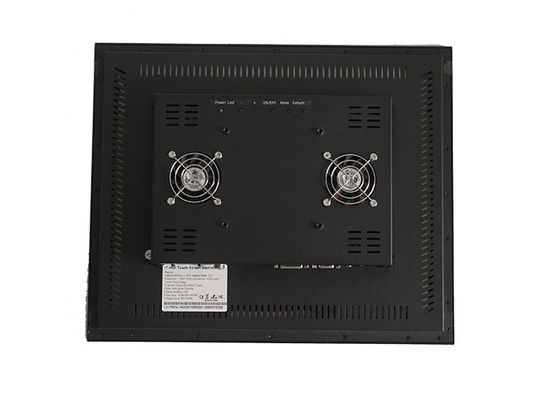

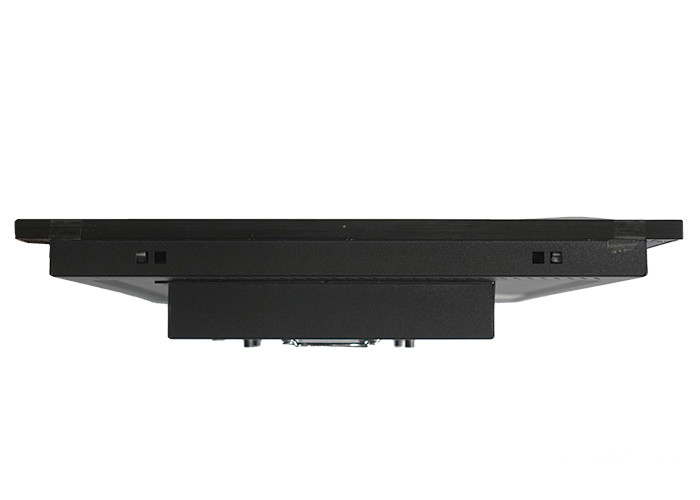

HDMI VGA 1000 nits 17" 1280x1024 Wall Mounted LCD Monitor
Product Details
| Product Name | LCD Outdoor High Brightness Industrial Monitor | Products Status | Stock |
|---|---|---|---|
| Resolution | 1280*1024 | Screen Size | 17" |
| Interface | HDMI/VGA | Brightness | 1000 Nits |
| IP Grade | IP65 Waterproof | Viewing Angle | 80°/80°/80°/80° (R/L/U/D) |
| Material | Aluminium Alloy Front Bezel + High Strength Cold Rolled Steel Back Case | Touchscreen Type | Project Capacitive Touch (10 Points ) |
| Temperature Range | Operating: -20 To 70°C, Storage: -30 To 80°C | Power Supply | DC 12V(AC 100-240V 50/60Hz) |
| Widescreen | Yes | Color | Black |
| Application | Desktop/wall Mount | Warranty | 1 Years |
| High Light | 1280x1024 Wall Mounted LCD Monitor,17" Wall Mounted LCD Monitor,1000 Nits Touch Screen Monitor |
||
Product Description
-20 to 70°C 17 INCH Wall-mounted LCD Outdoor High Brightness Industrial Monitor
Key Features:
1.Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL17 | |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 4.5kg |
| Gross weight | 6.5kg |
| Product Dimension | 42.74*35.6*7.65cm |
| Packing size | 53*47*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Accessories:
Power cable, Power adapter, Video cable, Screws
