| Brand Name: | Sihovision |
| Model Number: | SL24 |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |

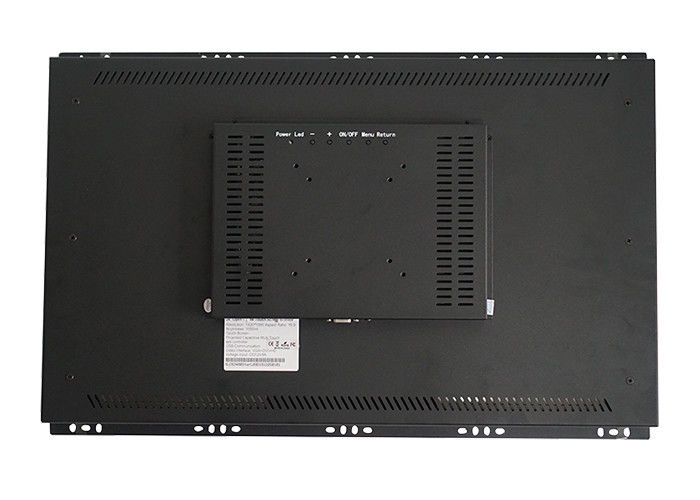

Open frame 1000 cd/m2 lcd touch monitors wide temperature working -20 to 70C with AR glass
Feature
1. Open frame design.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable.
6. Cover with AR glass, Anti glare, Anti UV
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL24 | |
| LCD panel | |
| Panel size | 24" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare, Anti UV |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75×75/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C. |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 9kg |
| Gross weight | 10.5kg |
| Product Dimension | 57.8×33.5×6.2cm |
| Packing size | 72×49×16 m |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable |
| Other | |
| Mounting | open frame |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Drawing
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
