Place of Origin:
Shenzhen , China
Brand Name:
Sihovision
Certification:
CE, RoHS, FCC
Model Number:
SM603

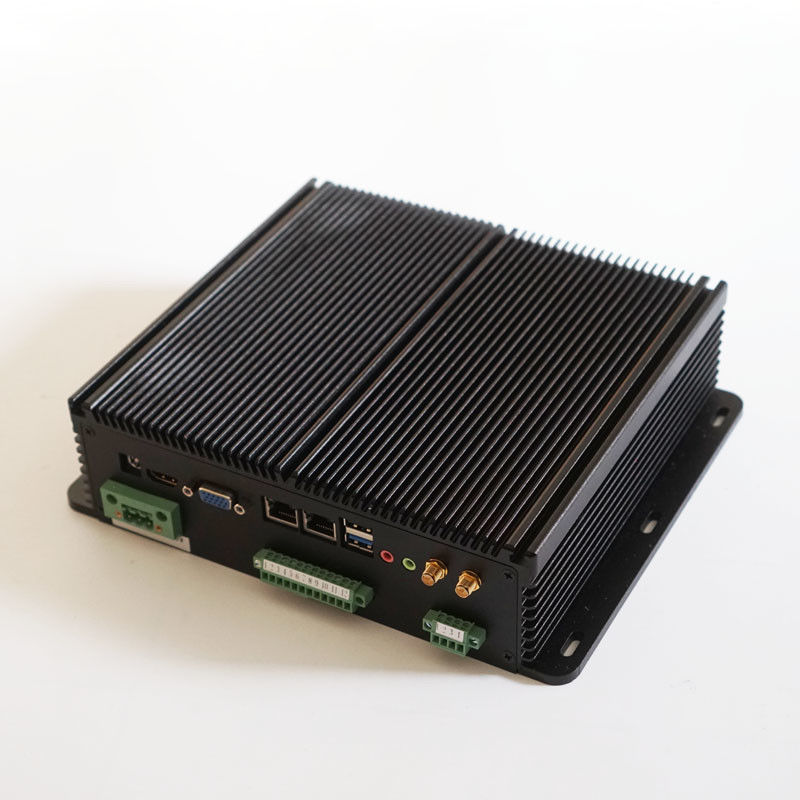

Customized Interface GPIO CANBUS 9V-36V Vehicle PC, -20°C~70°C Operating Temperature
Features
1. Full Aluminum alloy enclosure, compact,fanless design, dustproof,excellent heat dissipation.
2. Wide operating temperature support (-20°C~70°C)
3. High performance motherboard, 7x24 continuous operation
4. 9V-36V wide voltage, 3 Pin Phoenix terminal, Shock - proof.
5. Customized interface for vehicle use: GPIO + CANBUS
Specification
| Model: SM603 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel® Skylake-U series SOC |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 32G SSD |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Network | 2×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI + Bluetooth4.0 |
| I/O Ports | 4*USB, 2*RJ45, 1*HDMI, 1*VGA, 1*Audio in/out, 1*DC in, 1xPhoenix terminal 9-36V |
| 1x8pins GPIO , 1xCANBUS | |
| HD support | 1080P |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36W |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver , white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage : -30 to 80°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 1.5kg |
| Gross weight | 3kg |
| Product Dimension | 26*21.5*6.8cm |
| Packing size | 43*38*19mm |
| Accessories | Power cable, mounting kits |
| Other | |
| Mounting (options) | Built-in mounting bracket |
| wall/desking mounting brackets (optional) | |
| Warranty | 1 year warranty |
Drawing
Rugged PCs ideal for applications like
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
