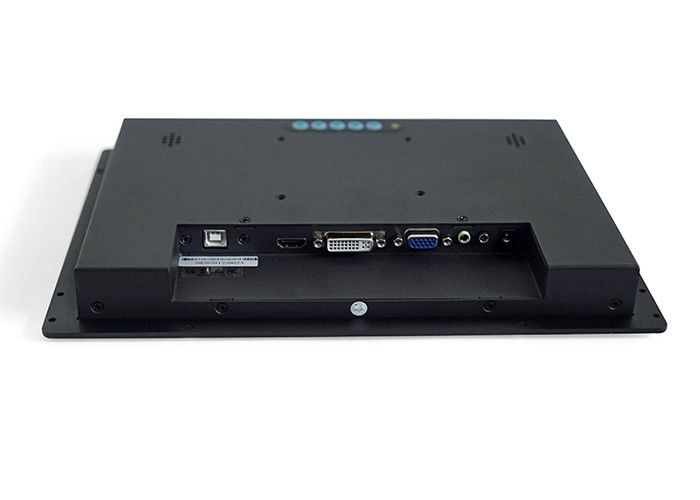

VGA 1000nits Embedded Capacitive Touch Monitor Anti Glare 10.1"

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL101
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 33×30×10cm/ 2.8kgs/ 1pc
Delivery Time 5-10 working days for sample, 15-25 working days for bulk
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 50000 pcs/month
Product Details
Product Name Embedded Monitors Color Balck
Material High Strength Cold Rolled Steel Resolution 1280*800
View Angle 85°/85°/85°/85° (R/L/U/D) Signal Ports VGA/ DVI/ HDMI
Brightness 1000 Cd/m2 Temperature Range -20 To 70°C
Working Voltage AC 100 - 240V , 50-60Hz
High Light

1000nits Embedded Capacitive Touch Monitor

,

VGA Embedded Capacitive Touch Monitor

,

10.1" Anti Glare LCD Screens

Leave a Message
Product Description

Feature
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.


Specification

Model:SL101
LCD panel
Panel size10.1"
Resolution1280*800
Aspect ratio16:10
Support Color16.7M colors
Brightness (cd/m²)1000 nits
Brightness controlLight sensor for auto dimming
Contrast ratio1000:1
View angle85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points )
Surface TreatmentAnti glare
Surface Hardness3H
Luminousness90%
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Working Life>50 million times
Touch options(4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA1×VGA
DVI1×DVI
HDMI1×HDMI
Audio in/outoptional
OSD
OSD controlBrightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languagesEnglish, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OSWindows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power SupplyAC 100 - 240V , 50-60Hz
Working voltageDC 12V
Power consumption≤25W
Enclosure
Materialaluminium alloy bezel+High strength cold rolled steel back case
ColorBlack, white, Silver , color can be customized
VESA mounting75×75mm/100×100mm
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature Rangeoperating: -20 to 70°C, storage: -30 to 80°C
Relative humidityoperating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight1.7kg
Gross weight2.8kg
Product Dimension29.95×21×3.3cm
Packing size33×30×10cm
AccessoriesPower adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws
Other
 embedded mounting
mountingwall mounting brackets (optional)
desk stand holder (optional)
Warranty1 year warranty
CertificatesCE, FCC, RoHS


VGA 1000nits Embedded Capacitive Touch Monitor Anti Glare 10.1" 0
Application

Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores

Automatic pay station machine

Packaging testing equipment

Parking lot self-service payment machine
