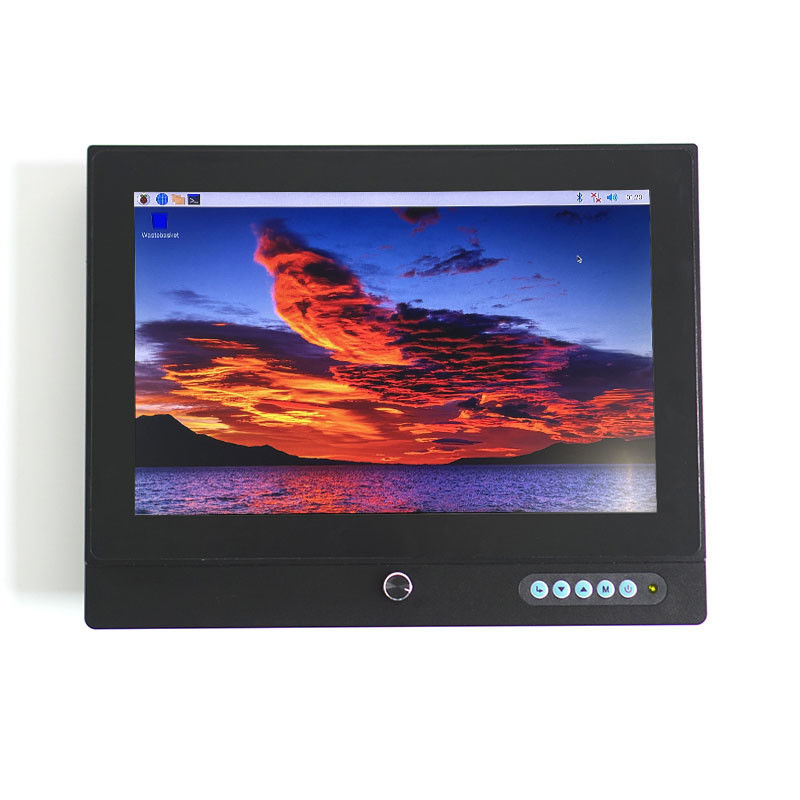

12 Inch Raspberry Pi Touch Monitor 1000 Nits Industrial LCD Screen With Dimmer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Panel Size | 12.1 Inch | Resolution | 1280*800 |
|---|---|---|---|
| Touch Type | Capacitive | Brightness | 1000 Nits |
| View Angle | 89°/89°/89°/89° (R/L/U/D) | Power Supply | DC12V |
| Certificates | CE, FCC, RoHS | Operating | -20 To 70°C |
| Control | Dimmer | Feature | Raspberry Pi 3b+ |
| High Light | 12 Inch Raspberry Pi Touch Monitor,Dimmer Raspberry Pi Touch Monitor,1000 Nits Industrial LCD Screen |
||
Product Description
12 Inch Raspberry Pi Touch Monitor 1000 Nits Industrial LCD Screen With Dimmer
Features
- Front bezel aluminum alloy brushed metal craft,seamless design,Front panel IP65 waterproof.
- Industrial LCD panel, higt brightness 1000 nits, sunlight readable.
- Adopt multi-points PCAP touch panel,high sensitive and fast-response. EETI waterproof solution, Support touch accurate with drop water on the screen.
- Built in a raspberry pi 3b+.
- With dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
- Cover with 2MM tempered glass with Anti-glare function.
- High performance mainboard, 7x24 continuous operation.
Technical Details
| Model:SL121P | |
| Raspberry pi | |
| Processor | Raspberry Pi 3b+, 64bits, 1.4GHz, Quad core |
| Raspberry Pi 3b, Raspbery Pi4b Optional | |
| WIFI | 802.11ac wireless 2.4GHz/5GHz double frequency WIFI |
| Bluetooth | Bluetooth 4.2 |
| Network | Gigabit Ethernet port |
| USB port | 4xUSB2.0 |
| GPIO port | 40 pins |
| POE | optional |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wires resistive touch, IR touch optional) |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Signal Ports
| I/O | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| USB | 4xUSB2.0 |
| Micro USB | 1xMicro USB |
| LAN | 1xLan |
| DC IN | 1x 12V DC |
| DC IN | 1x Phoenix terminal with 9-36V DC IN |
| Audio in/out | optional |
Power Supply
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
Application Environment
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details
| Packing Details | |
| Net weight | 2 kg |
| Gross weight | 4 kg |
| Product Dimension | 31.26×24.59×4.1 cm |
| Packing size | 40×35×15 cm |
| Accessories | Power adapter,embedded screws,VGA cable cable, USB cable |
Drawing
FAQ
Q1: Are you manufacturer?
A: Yes,we are professinal manufacturer, which establish in 2014, having 7 years production experience.
Q2: Where is your factory?
A: Our factory is located in shenzhen City, Guangdong Province with 1000 square meters workshop.
Q3: Do you support OEM or ODM?
A: OEM & ODM are welcomed. We have been offered OEM or ODM service for well-known brands and even the Chinese military.
Q4: How about the maintenance issue/warranty?
A: The warranty time is usually 1 years for most of products, within this time, no fee will be charged. If warranty time expired, we are aslo willing to offer free online guiding support, but repairing services will be charged reasonably.
