RS232 Industrial LCD Panel Monitor 1000nits 10 Point Capacitive Touch Screen

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL07
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details
Product Name RS232 Touch Monitor Colors Balck
Material Aluminum Alloy Resolution 1024*600
View Angle 75°/75°/70°/75° (R/L/U/D) Signal Ports VGA/ HDMI
Brightness 1000 Nits IP Grade Front IP65
High Light

RS232 Industrial LCD panel monitor

,

seamless capacitive Industrial LCD panel monitor

,

1000nits capacitive touch screen

Leave a Message
Product Description

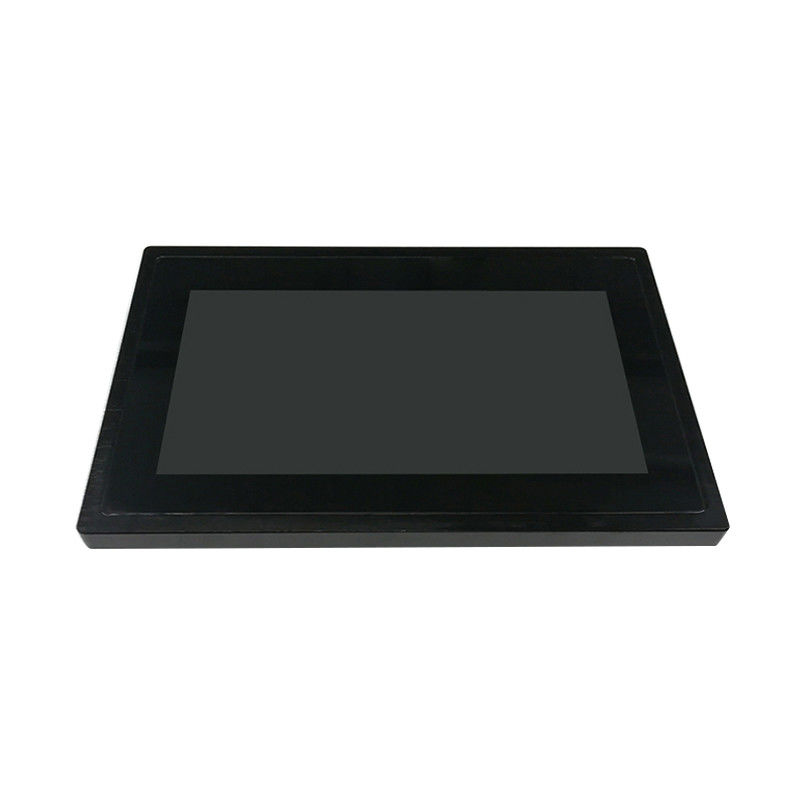

Industrial LCD panel monitor 1000nits 10 point capacitive touch screen


Feature



1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. High performance mainboard, 7x24 continuous operation.
4. VGA+HDMI interfaces, RS232 for touch.
5. 1000 nits, sunlight readable.
6. Support wall mounting, embedded mounting, desk stand mouting etc.


Specification

Model:SL07
LCD panel
Panel size 7"
Resolution 1024*600
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Contrast ratio 800:1
View angle 75°/75°/70°/75° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface RS232 (USB optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
HDMI 1x HDMI
DVI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 75x75mm
IP grade Front panel IP65 waterproof



Advantage

Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?
A: Sample needs 7-15 days, mass production time needs 7-45 days or more according to the order quantity.


Q3. Do you have any MOQ limit?
A: Yes, but MOQ varies because of different product type, 1 pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional.


Q5. How to proceed with an order?
A: Firstly let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
