Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SL121
Video
Video
Raspberry Pi 3b Panel Monitor 12.1 Inch PCAP Touch Screen 1000 Nits Sunlight Readable
Feature
1. Front bezel aluminum alloy brushed metal craft,seamless design,Front panel IP65 waterproof.
2. Industrial LCD panel, higt brightness 1000 nits, sunlight readable.
3. Adopt multi-points PCAP touch panel,high sensitive and fast-response. EETI waterproof solution, Support touch accurate with drop water on the screen.
4. Built in a raspberry pi 3b+.
5. With dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
6. Cover with 2MM tempered glass with Anti-glare function.
7. High performance mainboard, 7x24 continuous operation.
Specification
| Raspberry pi | |
| Processor | Raspberry Pi 3b+, 64bits, 1.4GHz, Quad core |
| Raspberry Pi 3b, Raspbery Pi4b Optional | |
| WIFI | 802.11ac wireless 2.4GHz/5GHz double frequency WIFI |
| Bluetooth | Bluetooth 4.2 |
| Network | Gigabit Ethernet port |
| USB port | 4xUSB2.0 |
| GPIO port | 40 pins |
| POE | optional |

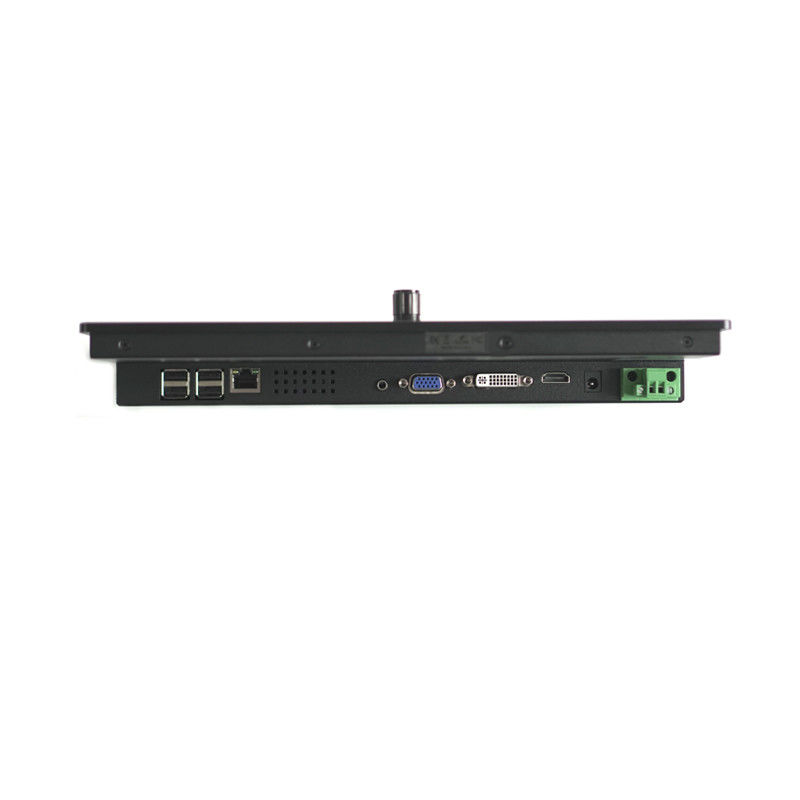

| I/O | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| USB | 4xUSB2.0 |
| Micro USB | 1xMicro USB |
| LAN | 1xLan |
| DC IN | 1x 12V DC |
| DC IN | 1x Phoenix terminal with 9-36V DC IN |
| Audio in/out | optional |
LCD
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wires resistive touch, IR touch optional) |
Advantage
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 7-15 days, mass production time needs 7-45 days or more according to the order quantity.
Q3. Do you have any MOQ limit?
A: Yes, but MOQ varies because of different product type, 1 pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A: Firstly let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
