Waterproof IP67 LCD Display Optical Bonding Technology 1000 Nits

Place of Origin China(Mainland)
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL24
Minimum Order Quantity 1 piece
Price Negotiable
Payment Terms T/T, Western Union, MoneyGram, Paypal
Product Details

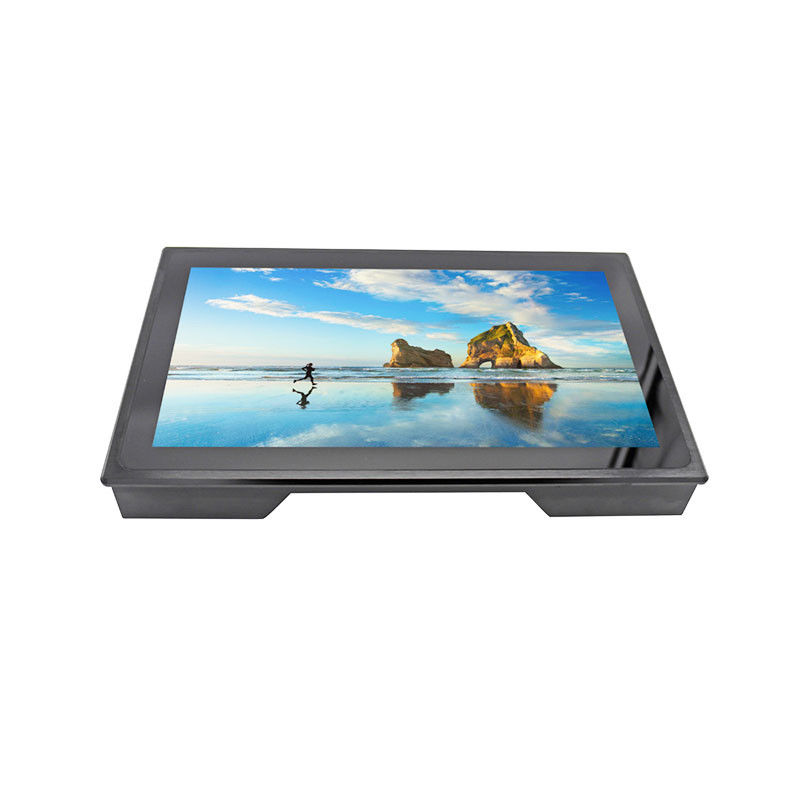

Product Name IP67 Waterproof LCD Monitor Panel Size 24"
Resolution 1920*1080 Brightness 1000nits
Material Aluminum Alloy Power DC 12V
Operating -20C To +70C Warranty 1 Year Warranty
High Light

Waterproof IP67 LCD Display

,

Optical Bonding ip67 lcd display

,

Aluminum Alloy 1000 nits monitor

Leave a Message
Product Description

Wholesale IP67 Waterproof LCD Monitor Optical Bonding Technology 1000 Nits Screen -20C To +70C Operating

Feature

1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. 24'' Industrial LCD panel, 1000 nits. sunlight readable. Anti glare.
3. Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.
4. Optical bonding technology.
5. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
6. High performance mainboard, 7x24 continuous operation.


Waterproof IP67 LCD Display Optical Bonding Technology 1000 Nits 0Waterproof IP67 LCD Display Optical Bonding Technology 1000 Nits 1


Specification

Model:SL24W
LCD panel
Panel size 24"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Surface treatment Anti glare
Contrast ratio 1000:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch optional)
Singal Ports
VGA 1xVGA
HDMI 1xHDMI
DVI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤50W
Enclosure
Material aluminium alloy front bezel + High strength cold rolled steel back case
Color Black, white, Silver, color can be customized
VESA mounting 75x75mm/100x100 mm
IP-grade Full IP67 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -10 to 60°C
Relative humidity operating: 10% to 90%, storage: 5% to 90%
