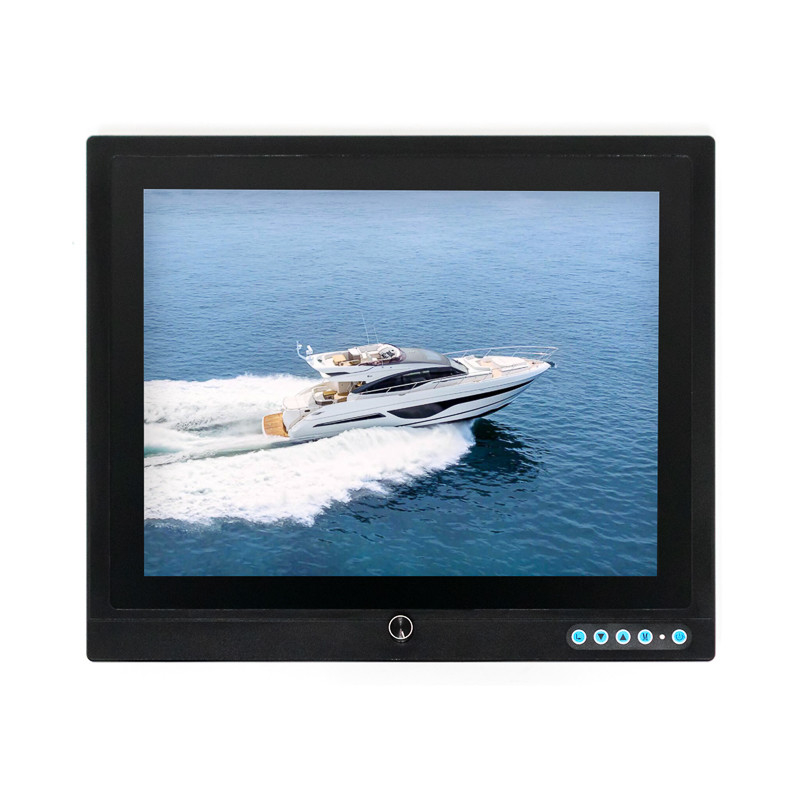

Industrial 15 Inch LCD Monitor 1024X768 Resolution Capacitive Touch Screen

Industrial 15 Inch LCD Monitor 1024X768 Resolution Capacitive Touch Screen

Capacitive Touch 15 inch LCD Monitor

15 inch LCD Monitor 1024X768

Manual dimmer Capacitive Touch Screen Monitor

Place of Origin:

China(Mainland)

Brand Name:

Sihovision

Certification:

CE, FCC, RoHS

Model Number:

SL15

Contact Us
Request A Quote
Product Details
Product Name:
Manual Dimmer LCD Monitor
Panel Size:
15"
Resolution:
1024*768
Brightness:
1000 Nits
Material:
Aluminum Alloy
Power:
DC 12V, 40W
Operating:
-20C To 70C
Warranty:
1 Year Warranty
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Product Description

Industrial 15inch LCD Monitor 1024*768 resolution capacitive touch screen with a dimmer for controlling the brightness


Feature

1. Material: aluminium alloy bezel+metal back case.
2. Industrial 15'' LCD panel, 1024*768 resolution, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. Anti glare.
5. High brightness 1000 nits, sunlight readable.
6. with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
7. High performance mainboard, 7x24 continuous operation.
8. VGA+HDMI+AV+USB player+USB for touch.
9. Support wall mounting, embedded mounting, desk stand mouting etc.



Specification



Model:SL15
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Brightness control Manual dimmer
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1x VGA
HDMI 1x HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 5kg
Gross weight 7.5kg
Product Dimension 37.26*31.19*3.85cm
Packing size 55*41*19cm
Accessories Power adapter, power cord, HDMI cable, USB touch cable, embedded screws
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS
