Place of Origin:
China(Mainland)
Brand Name:
Sihovision
Certification:
CE, FCC, RoHS
Model Number:
SL121
Video
Video

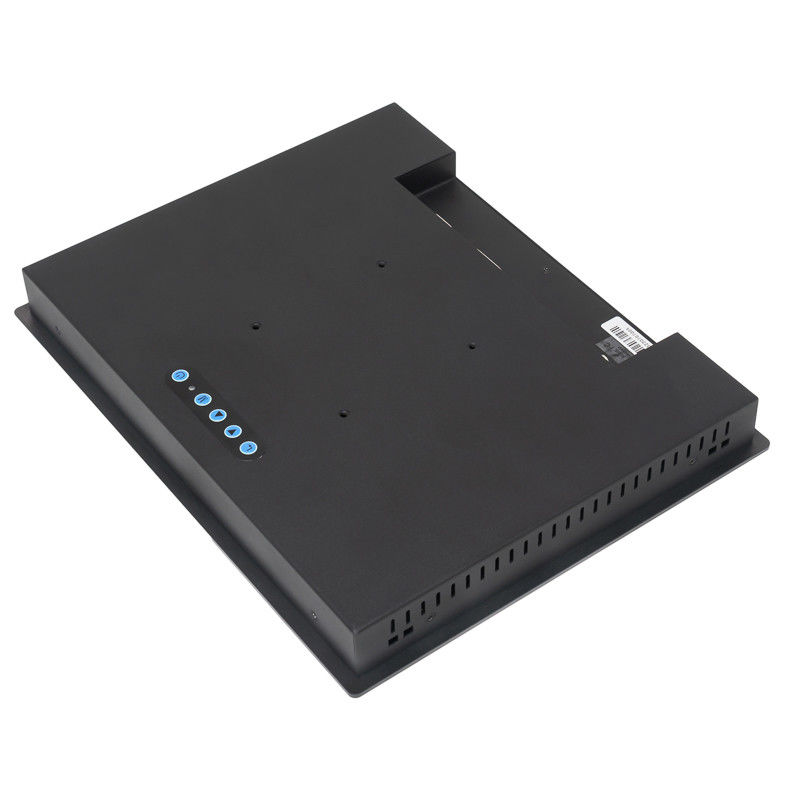

Wall mounted 12 inch full hd touch screen monitor 1000 nits multi-points PCAP touch screen
Feature
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. Anti glare.
7. High performance mainboard, 7x24 continuous operation.
8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Model:SL121 | |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | Anti glare |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤25W |
| Enclosure | |
| Material | aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 3 kg |
| Gross weight | 3.9 kg |
| Product Dimension | 30.6×24.45×3.3cm |
| Packing size | 39*35*14cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws |
| Other | |
| embedded mounting | |
| mounting | wall mounting brackets (optional) |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Application
Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores
Automatic pay station machine
Packaging testing equipment
Parking lot self-service payment machine
FAQ
Q: What is your main size for your PCAP capacitive touch screen monitor?
A: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 21.5” 22” 23” 23.8” 24” 27” 32” 43” 55” 65”.
Q: Is it waterproof? Vandal proof.
A: Yes, the front panel is waterproof. It is anti-vandal.
Q: Is it anti-glare?
A: Yes.
Q: Whether your PCAP capacitive touch screen monitor support OEM?
A: Yes, our PCAP touch monitor support customization with size, brightness, function, appearance, resolution, etc.
Q: What is your capacitive touch monitor application?
A: Desktop touchmonitors, Open Frame Touchmonitors, Interactive Digital Signage, Point-of-information kiosks,
Point-of-sale (POS) terminals, Gaming and lottery terminals, Self-service/Self-automation
Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank branches, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
