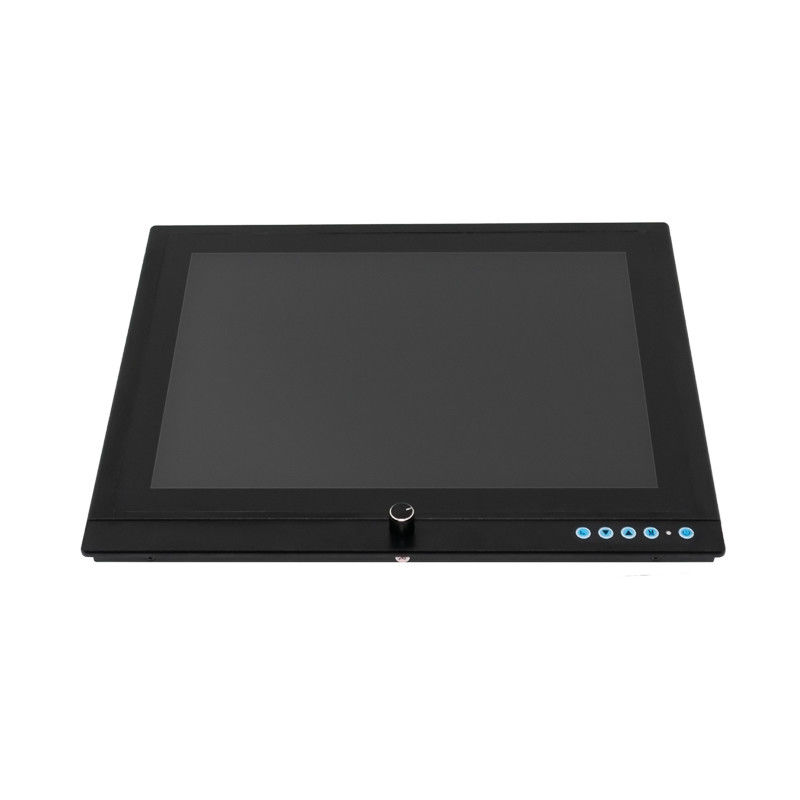

Industrial 15 Inch LCD Displays 1024*768 PCAP Touch Panel Monitor Sunlight Readable
Product Details
| Resolution | 1920*1080 | Aspect Ratio | 16:9 |
|---|---|---|---|
| Brightness (cd/m²) | 1000 Nits, Anti Glare | View Angle | 89°/89°/89°/89° (R/L/U/D) |
| Touchscreen Type | RS232 Capacitive Touch (10 Points ) | Working Voltage | DC12V |
| High Light | dimmer 15 Inch LCD Displays,PCAP Touch 15 Inch LCD Displays,Sunlight Readable PCAP Touch Panel Monitor |
||
Product Description
Industrial 15 Inch LCD Displays 1024*768 PCAP Touch Panel Monitor 1000 Nits Sunlight Readable With Dimmer
Features
1. Material: aluminium alloy bezel+metal back case.
2. Industrial 15'' LCD panel, 1024*768 resolution, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. Anti glare.
5. High brightness 1000 nits, sunlight readable.
6. with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
7. High performance mainboard, 7x24 continuous operation.
8. VGA+HDMI+AV+USB player+USB for touch.
9. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | operating: 10% to 80%, storage: 5% to 90% |
FAQ
Q: What is your main size for your PCAP capacitive touch screen monitor?
A: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 21.5” 22” 23” 23.8” 24” 27” 32” 43” 55” 65”.
Q: Is it waterproof? Vandal proof.
A: Yes, the front panel is waterproof. It is anti-vandal.
Q: Is it anti-glare?
A: Yes.
Q: Whether your PCAP capacitive touch screen monitor support OEM?
A: Yes, our PCAP touch monitor support customization with size, brightness, function, appearance, resolution, etc.
Q: What is your capacitive touch monitor application?
A: Desktop touchmonitors, Open Frame Touchmonitors, Interactive Digital Signage, Point-of-information kiosks,
Point-of-sale (POS) terminals, Gaming and lottery terminals, Self-service/Self-automation
Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank branches, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
